    Pre-Startup Safety Review (PSSR): A Practical Guide for Industrial Plants

    Starting up a plant, or restarting it after a significant change, is one of the highest-risk activities in its life. Equipment is energized, process fluids are introduced, and systems are operated together for the first time. Mistakes during startup can cause equipment damage, environmental releases, injuries, or worse.

    The Pre-Startup Safety Review (PSSR) is the final formal check before hazardous materials or energy are introduced or reintroduced. It confirms that construction is complete, safety systems are functional, procedures are in place, and personnel are trained. It is one of the last barriers before startup, and one of the few that looks at the whole plant rather than a single system.

    For small to medium-scale industrial plants, PSSR is especially important because there is less redundancy and fewer resources to absorb the consequences of a startup problem. A missed item can turn a smooth startup into an incident.

    This article explains what PSSR is, when it applies, and how to conduct one practically in an industrial plant.

    What Is a Pre-Startup Safety Review?

    A Pre-Startup Safety Review is a formal, documented review conducted before introducing hazardous materials or energy into a process, or before restarting after a significant change.

    The purpose of PSSR is to confirm that:

    • Construction and equipment conform to the design specification.
    • Safety, operating, maintenance, and emergency procedures are in place and adequate.
    • A hazard analysis has been completed, and its recommendations are resolved or scheduled.
    • Management of Change (MOC) requirements have been met for modifications.
    • Training of affected personnel is complete.
    • Open items are either closed or formally accepted with a due date.
    • The plant is ready to be started safely.

    PSSR and Commissioning

    PSSR is not a substitute for commissioning. Commissioning verifies that equipment and systems function as designed. PSSR verifies that the plant is ready to be started safely.

    The two overlap in sequence. Construction, mechanical completion, and non-hazardous (“cold”) commissioning, such as loop checks, motor run tests, and water or air tests, are normally finished before the PSSR. The PSSR is then completed before hazardous materials or energy are introduced, which is when “hot” commissioning and startup begin. In other words, PSSR is the gate between preparation and the introduction of hazards.

    Regulatory and Standards Background

    In many jurisdictions PSSR is a legal requirement for facilities handling hazardous chemicals. For example, the US OSHA Process Safety Management standard (29 CFR 1910.119) and the EPA Risk Management Program rule (40 CFR Part 68) both require a PSSR for new facilities and for modified facilities where the modification changes process safety information. Industry guidance, such as the CCPS Risk Based Process Safety framework, also treats PSSR as a core element.

    Requirements differ by country and industry, so plant owners should confirm what applies to them. Even where PSSR is not legally required, it is good practice for any plant with significant hazards.

    When Is PSSR Required?

    PSSR is required before startup in specific situations.

    Trigger Description
    New plant or unit First startup of a new facility
    Significant modification Changes that alter process safety information or design basis
    Change requiring MOC Changes classified as moderate or major under Management of Change
    Restart after extended shutdown Restart after a long outage or turnaround
    Restart after an incident Restart after an incident that affected safety systems

    The first three triggers are generally regulatory. The last two are good practice, and many organizations adopt them as policy.

    Not every change requires a PSSR. Minor changes handled under MOC may not need one, such as a like-for-like replacement within the design basis. The decision should be made as part of the MOC process and recorded.

    PSSR for Turnarounds

    Turnarounds (planned shutdowns for maintenance and modifications) often require PSSR before restart. Turnarounds often involve multiple changes that individually may not require PSSR, but collectively may. The cumulative effect of changes should be considered when deciding whether a PSSR is needed.

    A practical approach is to review the full turnaround scope list against MOC records before restart, and to decide up front whether a unit-level or plant-level PSSR is required. Even when a full PSSR is not needed, a restart readiness check covering isolations removed, blinds and spades pulled, temporary bypasses restored, and equipment boxed up is essential.

    PSSR and Other Processes

    PSSR is closely related to other plant processes.

    Process Relationship to PSSR
    Commissioning Cold commissioning is completed before PSSR; hot commissioning follows it
    Management of Change (MOC) Determines whether a PSSR is required for a change
    Hazard analysis (HAZOP, LOPA) Identifies hazards; PSSR confirms recommendations are addressed
    Mechanical integrity Confirms equipment is inspected and tested
    Training Confirms personnel are trained on new or modified systems
    Operating procedures Confirms procedures are updated and available
    Permit-to-work and isolation Confirms all work permits are closed and isolations are removed

    PSSR is the integration point for all these activities. It confirms that everything is ready before startup.

    The PSSR Process

    Eight-step pre-startup safety review process diagram

    While PSSR processes vary by organization, most follow a similar structure.

    Step Description
    1. Determine applicability Is a PSSR required for this startup?
    2. Assemble the team Who will conduct the review?
    3. Prepare the checklist What items must be verified?
    4. Conduct the review Verify each item, including a field walkdown, and document findings.
    5. Resolve open items Close or formally accept outstanding items.
    6. Approve and sign off Authorized personnel approve startup.
    7. Start up Proceed with startup.
    8. Follow up Confirm open items are completed and capture lessons learned.

    The PSSR must be completed before startup, not after.

    Timing the PSSR

    PSSR should be scheduled so that there is enough time to resolve any findings before startup. If the PSSR is conducted at the last minute, there may not be time to address issues, and the temptation to proceed anyway increases.

    A practical approach is to build the PSSR into the project or turnaround schedule as a defined milestone:

    • Start preparing the checklist early, during construction or turnaround planning.
    • Begin progressive reviews of documents, training, and procedures well before mechanical completion.
    • Hold the final walkdown and sign-off with enough float in the schedule to fix findings.
    • Make clear to everyone, including senior management and the client, that startup dates depend on PSSR completion and not the other way around.

    PSSR Team

    The PSSR team should include people with knowledge of the systems being reviewed.

    Typical team members:

    • Operations representative: Knows how the plant is operated.
    • Maintenance representative: Knows equipment condition and maintenance status.
    • Engineering representative: Knows the design and any modifications.
    • Safety representative: Knows safety systems and requirements.
    • Project representative: Knows what was constructed or modified.
    • Commissioning representative: Knows what has been tested and verified.

    For small plants, the team may be smaller, but the functions must still be covered, and one person may cover more than one function. The team should include someone independent of the project or modification, to provide objective review. This might be an engineer or supervisor from another unit, a corporate or sister-plant resource, or a third-party reviewer.

    The team leader should have the authority and the standing to recommend that startup be delayed.

    PSSR Checklist

    Pre-startup safety review checklist categories

    The PSSR checklist covers the items that must be verified before startup.

    Typical checklist categories:

    Category Items to Verify
    Construction and equipment Equipment installed per design, materials correct, supports and foundations complete
    Piping and instrumentation P&IDs updated, instruments installed and calibrated, valves in correct position
    Safety systems SIS tested, relief devices installed and tested, fire and gas detection functional
    Procedures Operating, maintenance, and emergency procedures updated and available
    Training Personnel trained on new or modified systems
    Hazard analysis Recommendations resolved or scheduled
    Permits and compliance Required permits obtained, regulatory requirements met
    Utilities Power, water, air, steam, and other utilities available and reliable
    Spare parts and consumables Critical spares and consumables available
    Emergency response Emergency equipment available, response plans updated
    Documentation Process safety information, as-built drawings, and equipment records updated

    Checklists should be tailored to the specific plant and the specific startup. A generic template is a useful starting point, but it should be reviewed and adapted. The checklist should also state who is responsible for each item and what evidence (test record, certificate, signed procedure) demonstrates that it is complete.

    Construction and Equipment Verification

    The PSSR verifies that construction and equipment conform to the design specification.

    Items to verify:

    • Equipment installed in the correct location and orientation.
    • Materials of construction match the specification.
    • Supports, foundations, and anchor bolts complete.
    • Insulation and refractory installed correctly.
    • Electrical connections complete and tested.
    • Instruments installed, calibrated, and connected.
    • Valves installed in the correct orientation and position.
    • Piping systems tested (pressure/leak tested) and flushed or cleaned.
    • Temporary items removed, including blinds, spades, temporary supports, strainers, and construction debris.
    • Equipment preservation maintained during construction.

    Any deviations from the design should be documented, assessed through MOC where necessary, and resolved before startup.

    Safety System Verification

    The PSSR verifies that safety systems are functional.

    Items to verify:

    • Safety instrumented functions (SIFs) functionally tested and validated, with SIL verification documented for the as-built design.
    • Relief devices installed, sized correctly, set at the correct pressure, and tested or certified.
    • Fire and gas detection systems functional and tested.
    • Fire protection systems, such as water, foam, and extinguishers, available and operational.
    • Emergency shutdown systems tested.
    • Alarms and trips tested at their set points.
    • Interlocks tested.
    • Temporary bypasses, overrides, and jumpers removed and protection restored.

    Safety systems must be verified before startup, not after.

    Procedure Verification

    The PSSR verifies that procedures are in place and adequate.

    Procedures to verify:

    • Operating procedures, including startup, normal operation, and shutdown.
    • Emergency procedures, including response to upsets and emergency shutdown.
    • Maintenance procedures for new or modified equipment.
    • Safety procedures, including permit-to-work and lockout/tagout.
    • Alarm response procedures.

    Procedures must reflect the current design, be reviewed by operators, and be available at the point of use. Startup procedures in particular should be walked through in the field before use, since errors often show up when the procedure is compared with the real plant.

    Training Verification

    The PSSR verifies that personnel are trained on new or modified systems.

    Training to verify:

    • Operators trained on new equipment, procedures, and alarms.
    • Maintenance personnel trained on new equipment and procedures.
    • Emergency response personnel trained on updated plans.
    • Contractors briefed on site hazards and procedures.

    Training records should be available and complete. Where possible, operators should be assessed for competence, for example through a walkthrough or simulator exercise, and not just recorded as having attended.

    Hazard Analysis Verification

    The PSSR verifies that hazard analysis recommendations are resolved or scheduled.

    Items to verify:

    • HAZOP or other hazard analysis completed.
    • Recommendations resolved, or formally accepted with a due date where they do not affect safe startup.
    • Management of Change (MOC) completed for modifications.
    • Risks assessed and acceptable.

    Open recommendations must be tracked to completion.

    Utilities Verification

    Utilities (power, water, air, steam) are essential for startup. Utilities must be available and reliable before startup. If a utility is interrupted during startup, the plant may not be able to shut down safely or maintain critical systems.

    Items to verify:

    • Electrical power available, including emergency power and UPS for control and safety systems.
    • Instrument air available, dry, and at the right pressure, with failure positions of control valves confirmed.
    • Cooling water, boiler feedwater, and steam available at the required quality and capacity.
    • Fuel, nitrogen, and other process utilities available where required.
    • Emergency utilities, such as fire water and emergency lighting, available.
    • Utility failure scenarios considered, and the plant’s response to each understood by operators.

    Where startup depends on temporary utilities, such as rental compressors or temporary power, these should be reviewed with the same rigor as permanent systems.

    Field Walkdown

    A PSSR is not just a paper review. The team should physically walk down the plant to confirm that what is installed matches the drawings and the checklist. Typical walkdown checks include:

    • Valve positions, blinds, and spades match the startup line-up.
    • Access, egress, lighting, and housekeeping are acceptable.
    • Labeling and signage are in place.
    • Emergency equipment is in place and accessible.
    • Nothing visible conflicts with the P&IDs.

    Many serious startup problems, such as a missing blind, a reversed check valve, or an unprotected opening, are found by walking the plant, not by reading documents.

    Managing Open Items

    Not every item can be closed before startup. Some items may be acceptable to leave open, provided they are formally accepted with a due date.

    Open items should be:

    • Documented with a clear description.
    • Assessed for risk if left open.
    • Formally accepted by authorized personnel.
    • Assigned to a responsible person.
    • Given a due date for completion.
    • Tracked to completion.

    Many organizations sort open items into two categories:

    Category Description Timing
    Category A (must close) Items that affect safe startup or operation Closed before startup
    Category B (may be deferred) Items that do not affect safe startup, such as minor documentation, painting, or non-critical spares Closed by an agreed date after startup

    Open items that affect safety must be closed before startup. Open items that do not affect safety may be accepted with a due date. If there is doubt about which category an item belongs in, treat it as Category A.

    If the PSSR finds that the plant is not ready, the correct answer is to delay startup. The team and the approvers need to know that a delay is an acceptable outcome, and that nobody will be penalized for stopping a startup that is not ready.

    Approval and Sign-Off

    The PSSR must be approved by authorized personnel before startup.

    Typical approvals:

    • Operations manager
    • Engineering manager
    • Safety manager
    • Plant manager (for major startups)

    Approval should be documented, with the approver’s name, date, and any conditions. The sign-off confirms that the approver has seen the evidence (not just the summary), that Category A items are closed, and that Category B items are accepted with owners and due dates.

    Documentation and Record Retention

    PSSR records should be retained and made available to operations, maintenance, and future project teams. They provide a record of what was verified, what was accepted as open, and who approved startup.

    Records to retain typically include:

    • The completed PSSR checklist and supporting evidence.
    • The team list and the independent reviewer’s findings.
    • The open items register, with closure evidence.
    • The sign-off page, with names, dates, and conditions.
    • Updated process safety information and as-built drawings.

    Retention periods should follow regulatory requirements and company policy. For hazardous facilities, keeping records for the life of the process or unit is common. Where a regulator or auditor may ask for them, records should be easy to retrieve, not buried in project archives.

    Common Mistakes in PSSR

    Even experienced teams make mistakes. Common ones include:

    • Skipping PSSR: Starting up without a formal review.
    • Late PSSR: Doing the review at the last minute, with no time to fix findings.
    • Incomplete checklist: Missing items that later cause problems.
    • No independent review: Team too close to the project to be objective.
    • Paper-only review: No field walkdown to confirm the as-built plant.
    • Open items not tracked: Recommendations forgotten after startup.
    • Safety systems not verified: Assuming systems work without testing.
    • Utilities overlooked: Assuming power, air, and cooling will be reliable.
    • Procedures not updated: Operators working from outdated documents.
    • Training not complete: Personnel unfamiliar with new systems.
    • Cumulative changes missed: Turnaround changes reviewed one by one instead of together.
    • Approval rushed: Signing off under schedule pressure.

    These mistakes can turn a smooth startup into an incident.

    After Startup: Follow-Up

    The PSSR does not end when the plant starts. After startup:

    • Track Category B items to closure and report progress to management.
    • Confirm that as-built drawings, P&IDs, and procedures are updated.
    • Review startup experience with the team, including what went well, what surprised people, and what the checklist missed.
    • Feed lessons learned into the checklist template for the next PSSR.

    How Japanese EPC Firms Approach PSSR

    Japanese engineering firms are known for their disciplined approach to startup and safety. Common characteristics include:

    • Thorough preparation: PSSR checklists are detailed and tailored to the plant.
    • Comprehensive verification: All items are verified, not assumed.
    • Independent review: Team includes people independent of the project.
    • Field confirmation: Walkdowns are used to verify the installed plant against the drawings.
    • Detailed documentation: PSSR records, findings, and open items are carefully maintained.
    • Disciplined approval: Sign-off is not rushed; open items are resolved or formally accepted.
    • Follow-through: Open items are tracked to completion.
    • Long-term focus: PSSR is treated as the foundation for safe operation, not a bureaucratic hurdle.

    For plant owners, this often means smoother startups, fewer surprises, and a plant that is ready for safe operation from day one.

    How to Evaluate PSSR Readiness

    When considering PSSR for your plant, ask:

    Question Why It Matters
    Is PSSR required for this startup? Determines whether a formal review is needed
    Is there a defined PSSR process? Ensures reviews are conducted consistently
    Is the PSSR scheduled early enough? Leaves time to fix findings before startup
    Is there a tailored checklist? Covers the specific items for this startup
    Is the team independent? Provides objective review
    Has the plant been walked down? Confirms the installed plant matches the documents
    Are safety systems verified? Ensures protection is functional
    Are utilities available and reliable? Ensures the plant can run and shut down safely
    Are procedures updated? Ensures operators have current information
    Is training complete? Ensures personnel know the systems
    Are open items tracked? Ensures recommendations are completed
    Is approval documented and retained? Confirms authorized sign-off and preserves the record

    A plant that addresses these questions is likely to have an effective PSSR.

    Conclusion

    The Pre-Startup Safety Review is the final formal check before hazardous materials or energy are introduced into a process. It confirms that construction is complete, safety systems are functional, procedures are in place, and personnel are trained.

    For small to medium-scale industrial plants, PSSR is especially important because there is less redundancy and fewer resources to absorb the consequences of a startup problem. Scheduled early, conducted independently, verified in the field, and signed off without schedule pressure, PSSR ensures that startup happens safely and that the plant is ready for reliable operation.

    Key Takeaways

    • PSSR is the final check before introducing hazardous materials or energy.
    • PSSR is required for new plants and significant modifications, and is good practice after extended shutdowns, turnarounds, and incidents.
    • PSSR verifies construction, safety systems, utilities, procedures, training, and hazard analysis.
    • PSSR is not a substitute for commissioning. It follows cold commissioning and comes before hazardous startup.
    • Schedule PSSR early enough to fix findings, and consider the cumulative effect of turnaround changes.
    • Open items affecting safety must be closed; others may be accepted only with an owner and a due date.
    • PSSR must be completed and signed off before startup, not after, and the records retained.
    • Japanese EPC firms emphasize thorough preparation, field verification, and independent review.
  • Management of Change (MOC): A Practical Guide for Industrial Plants

    Management of Change (MOC): A Practical Guide for Industrial Plants

    Change is constant in an industrial plant. Equipment is modified, procedures are updated, setpoints are adjusted, and new materials are introduced. Some changes are planned; others happen in the field without formal review. Most changes seem minor at the time. But even small changes can invalidate the assumptions behind safety analyses, equipment designs, and operating procedures.

    Management of Change (MOC) is the process that ensures changes are reviewed, approved, and documented before they are implemented. It is one of the most important elements of process safety management, and one of the most commonly neglected.

    For small to medium-scale industrial plants, MOC is especially critical because there is less redundancy and fewer resources to absorb the consequences of an unmanaged change. A modification that seems harmless can create a new hazard, defeat a protection layer, or invalidate a safety analysis.

    This article explains what MOC is, why it matters, and how to implement it practically in an industrial plant.

    What Is Management of Change?

    Management of Change is a formal process for reviewing and approving changes to equipment, procedures, materials, organization, or operating conditions before they are implemented.

    The purpose of MOC is to ensure that:

    • The safety, health, and environmental impacts of a change are assessed before implementation.
    • Required approvals are obtained.
    • Documentation is updated.
    • Affected personnel are informed and trained.
    • The change is implemented safely.
    • Temporary changes are closed out and do not become permanent by default.

    MOC is not intended to prevent change. It is intended to ensure that change happens safely.

    Why MOC Matters

    Changes that are not reviewed can introduce new hazards or defeat existing protections. Typical examples of unmanaged changes that have led to incidents include:

    • A pressure relief valve replaced with a valve of a different set pressure, defeating overpressure protection.
    • A control setpoint adjusted without reviewing the effect on downstream equipment.
    • A temporary bypass installed and never removed, leaving a protection layer disabled.
    • A material substituted without checking compatibility with existing equipment.
    • A procedure changed informally without informing operators.
    • A staffing reduction that left a night shift unable to respond to an upset.

    These changes seemed minor at the time. Each one defeated a protection layer or created a new hazard that was not identified in the original safety analysis.

    For small plants, MOC is especially important because there are fewer people to catch mistakes and less redundancy to absorb the consequences.

    What Counts as a Change? Replacement in Kind

    A common source of confusion is deciding what triggers MOC. A practical rule:

    • A change is anything that alters the design basis, operating conditions, materials, procedures, software, or organization of the plant, other than a replacement in kind.
    • A replacement in kind is a replacement that satisfies the original design specification, for example, replacing a failed pump with an identical model, or a gasket with the same material and rating. Replacement in kind normally does not require MOC, but it still follows normal maintenance and work-permit controls.

    Be careful with “equivalent” parts. A valve with the same size and pressure class but a different trim material, a different set pressure, or a different failure position is not a replacement in kind. When in doubt, treat it as a change. Plants should define replacement in kind in writing so that maintenance and operations apply it consistently.

    Types of Changes

    MOC applies to a wide range of changes. Common categories include:

    Category Examples
    Equipment changes Modifications, replacements not in kind, additions
    Process changes Setpoints, operating conditions, flow rates
    Material changes Feedstock, chemicals, catalysts, additives
    Procedural changes Operating procedures, maintenance procedures
    Organizational changes Staffing, roles, responsibilities, outsourcing
    Software changes Control logic, alarm settings, safety system software
    Temporary changes Bypasses, temporary equipment, trial operations

    Not every change requires the same level of review. MOC processes typically define thresholds: minor changes may require a simple review, while major changes require full analysis.

    Organizational Changes

    Organizational changes, such as staffing reductions, role changes, shift pattern changes, or outsourcing of operations and maintenance, can affect safety by reducing the people available to operate and maintain the plant, or by removing experience and knowledge. These changes should be reviewed for their impact on safety-critical tasks. Useful questions include:

    • Are enough qualified people available on every shift to run the plant and respond to emergencies?
    • Are safety-critical tasks, such as emergency response, bypass approval, and relief device inspection, still clearly assigned?
    • Are contractors briefed on site hazards and procedures, and are responsibilities between owner and contractor clear?
    • Is critical knowledge retained when experienced people leave or roles change?

    Organizational changes are often decided for business reasons and are the most likely to bypass MOC. Plants should make sure that management, human resources, and operations leaders know that these changes are in scope.

    Software and Control System Changes

    Software changes, including control logic modifications, alarm setting changes, and safety system updates, require the same rigor as hardware changes. A small logic change can have unintended consequences. Software changes are subtle because they are invisible on the plant floor, are easy to make remotely, and can alter the behavior of many pieces of equipment at once.

    Good practice includes:

    • Controlling access to control and safety system programming with passwords, permissions, and logging.
    • Requiring review, testing (for example, simulation or factory acceptance testing where practical), and approval before changes are loaded.
    • Keeping backups and version records of logic, alarm, and trip settings, and confirming that the running version matches the approved version.
    • Applying extra scrutiny to safety instrumented system (SIS) changes, which should be handled within the safety lifecycle and verified by functional testing before return to service.
    • Considering cybersecurity, including remote access, patches, and firmware updates, as part of the review.

    The MOC Process

    Eight-step management of change process diagram

    While MOC processes vary by organization, most follow a similar structure.

    Step Description
    1. Identify the change Recognize that a change is being proposed or has occurred.
    2. Classify the change Determine whether it is minor, moderate, or major.
    3. Assess the impact Evaluate safety, health, environmental, and operational impacts.
    4. Approve or reject Authorized personnel approve or reject the change.
    5. Implement Implement the change safely, with required precautions.
    6. Update documentation Update drawings, procedures, and other documents.
    7. Train affected personnel Inform and train those affected by the change.
    8. Verify and close out Confirm the change was implemented correctly and close the MOC.

    For temporary changes, an additional step is required: confirming that the temporary change is removed and the original condition is restored.

    What Goes on an MOC Form

    A simple MOC form, paper or electronic, usually records:

    • A description of the change and the reason for it
    • The requester, date, and area or equipment affected
    • The classification (minor, moderate, major) and whether the change is temporary
    • The impact assessment and any recommendations or conditions
    • Documents to be updated and personnel to be trained
    • Whether a pre-startup safety review is required
    • Approvals with names and dates
    • Implementation, verification, and close-out sign-offs

    Roles and Responsibilities

    Clear roles prevent MOC from stalling or being ignored:

    • Requester: Identifies and describes the change.
    • MOC coordinator: Manages the process, tracks open items, and maintains records. In a small plant, one person is usually enough.
    • Reviewers: Engineering, operations, maintenance, safety, and other relevant disciplines assess the impact.
    • Approver: Authorized person who accepts the risk and approves the change at the level defined for its classification.
    • Implementer: Carries out the change in accordance with the approved scope.

    Classifying Changes

    Not all changes require the same level of review. Classification helps allocate resources appropriately.

    Classification Characteristics Review Level
    Minor No impact on safety, health, or environment; no change to process conditions Simple review and approval
    Moderate Some impact on process or equipment; limited safety implications Full MOC review with engineering input
    Major Significant impact on safety, health, or environment; changes to protection layers Full MOC review with formal hazard analysis

    Classification criteria should be defined in advance so that changes are consistently categorized. Example screening questions:

    • Does the change affect a safety instrumented function?
    • Does the change affect a relief system?
    • Does the change affect hazardous area classification?
    • Does the change affect operating conditions outside the current design envelope?
    • Does the change affect a procedure used during emergencies?
    • Does the change introduce a new material or a new hazard?

    If the answer to any of these is yes, the change should be classified as moderate or major. Changes affecting safety instrumented functions, relief systems, or other protection layers should normally be classified as major.

    Impact Assessment

    The impact assessment is the heart of the MOC process. It evaluates how the change affects:

    • Safety: Does the change introduce new hazards or affect existing protections?
    • Health: Does the change affect exposure to hazardous substances?
    • Environment: Does the change affect emissions, discharges, or waste?
    • Operations: Does the change affect production, quality, or reliability?
    • Compliance: Does the change affect regulatory compliance, permits, or insurance requirements?

    Assessment methods include:

    • Checklist: A structured list of questions for common changes.
    • What-if analysis: Brainstorming potential impacts.
    • HAZOP: For changes with significant process implications. Often only the affected nodes need to be reviewed.
    • LOPA: For changes affecting protection layers.

    For minor changes, a checklist may be sufficient. For major changes, a full hazard analysis may be required. The assessment should also consider the transition period (the activities needed to make the change, such as isolation, purging, and startup) as well as the final state. The assessment should also decide whether existing hazard analyses, such as the HAZOP, must be revised or revalidated.

    Approval and Authorization

    Changes must be approved by authorized personnel before implementation. The level of approval should match the classification of the change.

    Change Classification Approval Authority
    Minor Supervisor or area manager
    Moderate Engineering manager and operations manager
    Major Plant manager and safety manager

    Approval should be documented, with the approver’s name, date, and any conditions. Approvers should be independent enough to challenge the proposal, so requesters should not be the sole approvers of their own changes where this can be avoided.

    Emergency Changes

    Sometimes a change must be made immediately to protect people, equipment, or the environment. Emergency changes should be handled through a defined fast-track process, not ignored. Typical elements are:

    • Verbal or abbreviated approval from a designated authority
    • A quick safety check to avoid creating a new hazard
    • Full MOC documentation completed within a defined short period (for example, within a day or two)
    • A follow-up review to confirm the change is still appropriate, and to convert it to a permanent change or remove it

    Emergency changes should be rare. If they are frequent, they are a sign that planning or the MOC process is not working.

    Documentation Updates

    Changes often require updates to documentation. Documents that may need updating include:

    • Piping and instrumentation diagrams (P&IDs)
    • Process flow diagrams (PFDs)
    • Cause-and-effect charts
    • Safety analyses (HAZOP, LOPA)
    • Operating procedures
    • Maintenance procedures
    • Equipment datasheets
    • Relief system calculations
    • Electrical drawings
    • Instrument index
    • Alarm and trip schedules
    • Hazardous area classification drawings
    • Emergency response plans

    Documentation that affects safe operation, such as procedures and safety information, should be updated before the changed equipment or process is started up. Other records, such as as-built drawings, should be updated within a defined time after implementation and tracked until complete. Outdated documentation is a common source of incidents.

    Training and Communication

    Affected personnel must be informed and, where necessary, trained before the change is implemented or before the affected equipment is started up.

    Who needs to be informed:

    • Operators who run the affected equipment
    • Maintenance personnel who service it
    • Engineers who support it
    • Safety personnel who oversee it
    • Contractors who work in the area

    Training should cover:

    • What is changing and why
    • How the change affects their work
    • Any new hazards or precautions
    • New or revised procedures

    For minor changes, a briefing may be sufficient. For major changes, formal training may be required. Communication should also cover shifts that are off duty when the change is made, since shift handover is where many changes are missed.

    Temporary Changes

    Temporary changes becoming permanent hazards in industrial plants

    Temporary changes are among the most common sources of incidents. A temporary bypass, modification, or procedure change can easily become permanent by default if it is not tracked.

    Key requirements for temporary changes:

    • Authorization: Temporary changes must be approved like any other change.
    • Time limit: Temporary changes must have a defined end date, and extensions require re-approval.
    • Compensating measures: If the temporary change reduces protection, compensating measures must be in place.
    • Tracking: Temporary changes must be tracked to ensure they are removed.
    • Closeout: When the temporary change is no longer needed, it must be removed and the original condition restored.

    Temporary changes that are not closed out become permanent hazards. Temporary equipment, such as hoses, clamps, or jumpers, should be physically tagged so operators can recognize it in the field.

    Bypasses and Overrides

    Bypasses and overrides are a specific type of temporary change. They disable a protection layer, such as a safety instrumented function or an alarm.

    Key requirements:

    • Authorization: Bypasses must be approved by authorized personnel.
    • Time limit: Bypasses must have a defined duration.
    • Alarming: Bypasses should trigger an alarm or notification.
    • Logging: All bypasses should be logged and tracked.
    • Compensating measures: While a bypass is active, compensating measures (such as additional monitoring or manual procedures) should be in place.
    • Restoration: Bypasses must be removed when no longer needed, and the protection restored and verified, for example by a function test.

    Uncontrolled bypasses are a recurring contributor to serious incidents.

    MOC and Process Safety Management

    MOC is one of the core elements of process safety management (PSM). It is closely linked to other PSM elements:

    • Process hazard analysis: Changes may invalidate the PHA and require revalidation.
    • Operating procedures: Changes may require procedure updates.
    • Training: Changes may require training.
    • Mechanical integrity: Changes may affect equipment integrity requirements, such as inspection intervals and test plans.
    • Pre-startup safety review: Significant changes require a pre-startup safety review before restart.
    • Incident investigation and audits: Incidents should be checked for MOC failures, and audits should test whether MOC is actually followed.

    For plants subject to PSM regulations (such as OSHA PSM in the United States or Seveso in Europe), MOC is a regulatory requirement, not just a good practice. Plants should confirm the requirements that apply in their jurisdiction.

    Pre-Startup Safety Review (PSSR)

    A pre-startup safety review (PSSR) is required before restarting a process after a significant change, such as one that alters process safety information. It confirms that the change was implemented as designed, that procedures are updated, and that personnel are trained. A PSSR typically verifies that:

    • Construction and equipment conform to the design specification
    • Safety, operating, maintenance, and emergency procedures are in place and adequate
    • A hazard analysis has been completed, and its recommendations resolved or scheduled
    • Training of affected personnel is complete
    • Open items are either closed or formally accepted with a due date

    The PSSR is the last check before hazardous materials or energy are reintroduced. It should be signed off before startup, not after.

    MOC in Small Plants

    Small plants face particular challenges with MOC:

    • Fewer people to review and approve changes.
    • Less formal processes and documentation.
    • More informal communication.
    • Fewer resources for formal hazard analysis.

    Practical approaches for small plants:

    • Define clear thresholds: What changes require formal MOC? Which can be handled with a simple checklist?
    • Use checklists: Standard checklists make review faster and more consistent.
    • Assign responsibility: One person should be responsible for MOC.
    • Use the CMMS: The maintenance management system can track MOC and bypasses.
    • Review at meetings: Include MOC review in regular operations meetings.
    • Borrow expertise when needed: Use external engineers or the equipment vendor for major changes where in-house expertise is thin.
    • Learn from incidents: When an incident occurs, check whether MOC was involved.

    MOC does not need to be complex. It needs to be consistent.

    MOC Metrics

    Measuring MOC performance helps identify weaknesses. Useful MOC metrics include the number of changes processed, the time to complete MOC review, the number of temporary changes open past their due date, and the number of MOC bypasses. Tracking these metrics helps identify where the process is weak. Additional indicators worth considering:

    • Number of changes found during audits or walkdowns that had no MOC
    • Percentage of MOCs with documentation updated and training completed before startup
    • Number of overdue MOC action items
    • Number of emergency changes
    • Number of incidents or near misses traced to an unmanaged change

    Metrics should be reviewed regularly by plant management and used to improve the process, not to blame individuals. Rising numbers of reported unmanaged changes can actually be a good sign, since they show people are reporting.

    Common Mistakes in MOC

    Even experienced organizations make mistakes. Common ones include:

    • No MOC process: Changes happen without formal review.
    • Inconsistent classification: Similar changes classified differently.
    • Skipping impact assessment: Changes approved without evaluating safety impact.
    • Not updating documentation: Outdated drawings and procedures.
    • Not training personnel: Operators unaware of changes.
    • Temporary changes never closed: Bypasses and modifications become permanent.
    • Uncontrolled bypasses: Protection layers disabled without authorization.
    • MOC bypassed under schedule pressure: Changes made quickly without review.
    • Overusing “replacement in kind”: Non-equivalent parts installed without review.
    • Ignoring organizational and software changes: Only physical changes are reviewed.
    • No verification: Assuming the change was implemented correctly without confirming.

    These mistakes are costly to correct after an incident. They are much cheaper to avoid through consistent MOC practice.

    How Japanese EPC Firms Approach MOC

    Japanese engineering firms are often associated with a disciplined approach to change management. Common characteristics include:

    • Clear procedures: MOC processes are defined, documented, and followed.
    • Thorough impact assessment: Changes are reviewed carefully, with input from all relevant disciplines.
    • Detailed documentation: Drawings, procedures, and analyses are updated promptly.
    • Disciplined approval: Changes are approved by authorized personnel at the appropriate level.
    • Comprehensive training: Affected personnel are informed and trained.
    • Closeout discipline: Temporary changes are tracked and closed out.
    • Long-term focus: MOC is treated as an ongoing discipline, not a bureaucratic hurdle.

    For plant owners, this approach tends to support fewer incidents, better compliance, and a safer workplace. It also helps during project execution: changes made during engineering and construction are controlled, so the plant handed over matches its documentation.

    How to Evaluate MOC Readiness

    When considering MOC for your plant, ask:

    Question Why It Matters
    Is there a defined MOC process? Ensures changes are reviewed consistently
    Is “replacement in kind” defined? Clarifies what triggers MOC
    Are classification criteria defined? Allocates review effort appropriately
    Is impact assessment performed? Identifies safety, health, and environmental impacts
    Is approval authority defined? Ensures changes are approved at the right level
    Are organizational and software changes included? Covers changes that are not visible on the plant floor
    Is documentation updated? Prevents outdated drawings and procedures
    Is training provided? Ensures personnel understand changes
    Is PSSR performed for significant changes? Confirms readiness before restart
    Are temporary changes tracked and closed? Prevents temporary changes from becoming permanent
    Are bypasses controlled? Prevents protection layers from being disabled
    Are MOC metrics reviewed? Shows where the process is weak

    A plant that addresses these questions is likely to have effective MOC.

    Conclusion

    Management of Change is the process that ensures changes are reviewed, approved, and documented before they are implemented. It prevents changes from introducing new hazards or defeating existing protections.

    For small to medium-scale industrial plants, MOC is especially important because there is less redundancy and fewer resources to absorb the consequences of an unmanaged change. Applied consistently, MOC improves safety, compliance, and reliability.

    Key Takeaways

    • MOC ensures changes are reviewed, approved, and documented before implementation
    • Types of changes include equipment, process, material, procedural, organizational, software, and temporary
    • Replacement in kind normally does not require MOC, but it must be clearly defined
    • Changes are classified as minor, moderate, or major, with different review levels
    • Impact assessment evaluates safety, health, environmental, operational, and compliance impacts
    • Organizational and software changes can affect safety as much as hardware changes and must be in scope
    • Temporary changes and bypasses are common sources of incidents and must be tracked and closed out
    • A PSSR confirms readiness before restarting after a significant change
    • MOC metrics, such as overdue temporary changes and bypasses, show where the process is weak
    • MOC is a core element of process safety management
    • Small plants can implement MOC with clear thresholds, checklists, and assigned responsibility
    • Japanese EPC firms emphasize clear procedures and closeout discipline
  • Plant Safety Systems: Key Design Considerations for Industrial Plants

    Plant Safety Systems: Key Design Considerations for Industrial Plants

    Safety is not an add-on to plant design. It is a fundamental requirement that shapes every decision, from layout and equipment selection to operating procedures and maintenance practices. Safety systems are the engineered safeguards that protect people, the environment, and the plant itself when something goes wrong.

    For small to medium-scale industrial plants, safety systems are especially critical because there is less redundancy and fewer resources to absorb the consequences of an incident. A single safety failure can cause injury, environmental damage, or plant destruction.

    This article covers the key considerations in safety system design for industrial plants: hazard identification, risk assessment, layers of protection, safety instrumented systems, fire and gas detection, fire protection, pressure relief, emergency shutdown, alarm management, management of change, human factors, and emergency response.

    What Are Safety Systems?

    Safety systems are the engineered and procedural measures that prevent incidents, detect them when they occur, and mitigate their consequences.

    • Prevention systems: Design features, procedures, and controls that prevent hazardous conditions.
    • Detection systems: Sensors, alarms, and monitoring that detect abnormal conditions.
    • Mitigation systems: Equipment and procedures that reduce the consequences of an incident.
    • Emergency response systems: Equipment, procedures, and training for responding to incidents.

    Safety systems are not just hardware. They include procedures, training, management systems, and safety culture.

    The Layers of Protection

    Layers of protection in industrial plant safety design

    Safety is typically designed in layers, so that if one layer fails, others remain. This concept is called layers of protection.

    Layer Description Examples
    1. Inherent safety Design features that eliminate or reduce hazards Using less hazardous materials, reducing inventory
    2. Basic process control Control systems that keep the process within safe limits Control loops, process alarms
    3. Critical alarms and operator response Alarms that prompt operator action before a trip High-priority alarms with defined response procedures
    4. Safety instrumented systems Independent systems that bring the plant to a safe state Emergency shutdown systems
    5. Physical protection Devices that contain or relieve pressure Relief valves, rupture discs, dikes
    6. Plant emergency response Procedures and equipment for responding to incidents Fire fighting, evacuation
    7. Community emergency response External response for major incidents Fire department, emergency services

    The layers work together. No single layer is perfect, but together they provide defense in depth.

    Independence matters. In a formal analysis such as LOPA, a layer is credited as an independent protection layer (IPL) only if it is independent of the initiating event and the other layers, specific to the hazard, dependable, and auditable. For example, if the same control loop both causes a deviation and is relied on to prevent it, the two layers are not independent. Community emergency response is generally not credited as an IPL, because it does not prevent the incident.

    Hazard Identification

    Safety system design begins with hazard identification. You cannot protect against hazards you have not identified.

    Method Description Best For
    HAZOP Systematic review of process deviations using guide words Process systems
    HAZID Structured early-stage identification of hazards Concept and layout stages
    What-if analysis Brainstorming “what if” scenarios Any system
    Checklist Review against a list of known hazards Routine operations
    FMEA Identifying failure modes and their effects Equipment and systems

    For small plants, a combination of HAZOP for process systems and checklists for routine operations is often practical. HAZID is useful at the concept stage, and FMEA is used for higher-consequence equipment and systems.

    Process hazard analyses (PHAs) are not one-time exercises. They should be revalidated periodically (commonly every five years, or as required by local regulation) and whenever significant changes occur.

    Hazardous area classification. Where flammable gases, vapors, or dusts may be present, the plant must be classified into hazardous zones (for example, under IEC 60079 or NFPA 70/NEC). Classification determines the electrical equipment and ignition-source controls required, and it should be completed early, because it affects layout and equipment selection.

    Risk Assessment

    Hazard identification is followed by risk assessment. Risk is the combination of:

    • Likelihood: How likely is the hazard to cause harm?
    • Consequence: How severe would the harm be?

    Risk assessment approaches:

    • Qualitative: Using descriptive categories (high, medium, low).
    • Semi-quantitative: Using numerical scales for likelihood and consequence, such as a risk matrix or LOPA.
    • Quantitative: Using numerical probabilities and consequences (QRA).

    For most plant applications, a risk matrix or LOPA is sufficient. The result is compared with the owner’s tolerable risk criteria and determines how much protection is needed. Many organizations apply the ALARP principle (as low as reasonably practicable) to risks in the intermediate range.

    Layer of Protection Analysis (LOPA) is commonly used to determine the SIL required for a SIF. It compares the frequency of the initiating event and the protection layers already in place against the tolerable risk, and the remaining gap defines the risk reduction the SIF must provide.

    Safety Instrumented Systems (SIS)

    Safety instrumented system independence from basic process control

    A Safety Instrumented System (SIS) is an independent system designed to bring the plant to a safe state when abnormal conditions occur. It is separate from the basic process control system (BPCS).

    A SIS consists of three parts:

    • Sensors: Measure process conditions (pressure, temperature, level, flow).
    • Logic solver: Evaluates the sensor signals and decides when to act.
    • Final elements: Carry out the safety action (shutdown valves, motor trips).

    Key concepts:

    • Safety Instrumented Function (SIF): A specific safety function, such as closing a valve or tripping a pump.
    • Safety Integrity Level (SIL): A measure of the reliability required for a SIF. SIL 1 is the lowest and SIL 4 the highest.
    • Proof testing: Periodic testing to verify that the SIS functions correctly and to reveal dangerous failures not detected by diagnostics.
    • Independence: The SIS must be separate from the BPCS. Any sharing of components must be justified and its effect on integrity assessed.

    SIL levels (low-demand mode):

    SIL Average Probability of Failure on Demand (PFDavg) Risk Reduction Factor Notes
    SIL 1 10⁻¹ to 10⁻² 10 to 100 Lowest required reliability
    SIL 2 10⁻² to 10⁻³ 100 to 1,000 Common in process plants
    SIL 3 10⁻³ to 10⁻⁴ 1,000 to 10,000 For the highest-consequence hazards
    SIL 4 10⁻⁴ to 10⁻⁵ 10,000 to 100,000 Outside the scope of IEC 61511; rarely applicable in process plants

    The SIL of a SIF is set by the risk reduction it must deliver, not by the general “riskiness” of the plant. For small to medium-scale plants, most SIFs are SIL 1 or SIL 2, and SIL 3 is used for the highest-consequence hazards. If a SIF would need SIL 3 or higher, consider whether the process can be made inherently safer first.

    Architecture and diagnostics. The achieved SIL depends on the failure rates of the components, the voting architecture (such as 1oo1, 1oo2, or 2oo3), diagnostic coverage, and the proof test interval. Redundant architectures can improve safety, and voting schemes such as 2oo3 can also reduce spurious trips, which are themselves a hazard because shutdowns and restarts stress the plant.

    Bypasses and overrides. Bypasses are sometimes necessary for maintenance or startup, but they remove protection. They should be authorized, time-limited, alarmed, and tracked, with compensating measures in place while they are active.

    Functional Safety Management

    SIS reliability depends not just on design but on management over the lifecycle. Functional safety management covers the entire SIS lifecycle, from hazard identification through design, installation, operation, and maintenance. It includes procedures for change management, proof testing, and competency of personnel.

    In practice, this means a defined functional safety plan, assigned responsibilities, periodic functional safety audits and assessments, and records that show each SIF continues to perform as required.

    Fire and Gas Detection

    Fire and gas detection systems detect fires, flammable gas releases, and toxic gas releases.

    Fire detection:

    • Smoke detectors: Detect smoke from combustion.
    • Heat detectors: Detect temperature rise.
    • Flame detectors: Detect ultraviolet or infrared radiation from flames.
    • Manual call points: Allow people to raise the alarm.

    Gas detection:

    • Flammable gas detectors: Detect combustible gas or vapor, typically alarming at a fraction of the lower flammable limit.
    • Toxic gas detectors: Detect toxic gases at concentrations relevant to exposure limits.

    Key considerations:

    • Coverage: Detectors must cover all areas where hazards may occur. Placement should reflect the gas density, ventilation, and likely leak sources.
    • Redundancy and voting: Critical areas may require redundant detectors and voting logic to balance reliability against spurious activation.
    • Alarm logic: Detection should trigger alarms and, where appropriate, automatic protective actions, such as shutdown, isolation, ventilation change, or suppression release.
    • Testing: Detectors must be tested and calibrated periodically.

    Fire Protection Systems

    Fire protection includes both passive and active systems.

    Passive fire protection:

    • Fire-resistant construction: Materials and assemblies that resist fire spread.
    • Fire walls and barriers: Physical barriers that contain fire.
    • Fire doors: Doors that resist fire spread.
    • Cable protection: Fire-resistant coatings or enclosures.
    • Structural fireproofing: Protection of supports for vessels and pipe racks.
    • Containment and drainage: Dikes and drainage that limit the spread of burning liquids.

    Active fire protection:

    • Sprinkler and water spray systems: Automatic water-based suppression and cooling.
    • Foam systems: For flammable liquid fires.
    • Gas suppression systems: For electrical or control rooms (for example, inert gases or clean agents). CO₂ can be lethal in occupied spaces, so it requires pre-discharge alarms, time delays, lockouts, and strict life-safety controls.
    • Fire hydrants and monitors: For manual fire fighting.
    • Fire pumps and water supply: Ensure adequate water quantity and pressure for the design fire scenario.

    For small plants, the fire protection strategy should be based on the fire hazards present, the value of the assets, and local regulations and codes (such as NFPA standards where applicable). Passive protection is especially valuable because it works without power, detection, or human action.

    Siting and layout. Spacing between units, separation of ignition sources, location of control rooms and occupied buildings, and access for emergency vehicles all reduce the consequences of an incident before any active system is needed. Layout decisions made early are the cheapest safety measures.

    Emergency Shutdown Systems

    Emergency shutdown (ESD) systems bring the plant to a safe state quickly when a serious abnormal condition occurs.

    Key considerations:

    • Shutdown philosophy: What conditions trigger a shutdown? What is the safe state?
    • Shutdown levels: Different levels for different severities (for example, unit shutdown vs. plant shutdown).
    • Valve closure times: How quickly must valves close, and do they fail to the safe position?
    • Depressurization: Where is depressurization or blowdown required?
    • Manual initiation: Push buttons in safe, accessible locations.
    • Restart procedures: How is the plant restarted safely after a shutdown?

    ESD systems are typically part of the SIS and must meet the required SIL. They are normally linked to the fire and gas system, but the interface must be clearly defined so that a detection event triggers the intended level of shutdown.

    Pressure Relief Systems

    Pressure relief systems protect equipment from overpressure. They are the last line of defense against overpressure.

    Relief device types:

    • Spring-loaded pressure relief valves: Open when pressure exceeds the set point and reclose when it falls.
    • Rupture discs: Burst at a set pressure and do not reclose.
    • Pilot-operated relief valves: Use a pilot valve to control the main valve.

    Key considerations:

    • Scenario identification: Determine credible overpressure causes, such as blocked outlet, fire exposure, thermal expansion, control valve failure, and tube rupture.
    • Sizing: Relief devices must be sized for the governing (maximum) relief case, following recognized standards such as API 520/521 and ASME Section VIII.
    • Set pressure: Set at or below the equipment’s maximum allowable working pressure (MAWP), with allowance for accumulation.
    • Discharge location: Relief discharge must be routed to a safe location, such as a flare, scrubber, or safe vent, with attention to backpressure and reaction forces.
    • Isolation valves: Block valves upstream or downstream of relief devices must be locked or car-sealed open, or otherwise controlled.
    • Testing: Relief devices must be inspected, tested, and maintained periodically.
    • Documentation: Sizing, testing, and maintenance must be documented.

    Safety Instrumented System Design

    Designing a SIS requires several steps.

    Step Description
    1. Identify SIFs Which safety functions are required?
    2. Determine SIL What SIL is required for each SIF?
    3. Prepare the safety requirements specification (SRS) What must each SIF do, how fast, and what is the safe state?
    4. Design the SIS What sensors, logic solvers, and final elements are needed?
    5. Verify SIL Does the design meet the required SIL, considering architecture, failure rates, and test intervals?
    6. Implement Install, configure, and test the SIS.
    7. Validate Confirm that the SIS functions as specified in the SRS.
    8. Operate and maintain Proof test, manage bypasses, and maintain the SIS over its life.

    SIS design must follow applicable standards, such as IEC 61511 (process industry) or IEC 61508 (general functional safety). Equivalent national adoptions, such as ANSI/ISA-61511 (formerly ISA-84), are also widely used.

    Alarm Management

    Alarms are a key layer of protection, but poorly managed alarms can overwhelm operators. Alarm management ensures that alarms are meaningful and actionable. Too many alarms, or alarms that operators routinely ignore, undermine the protection they are meant to provide.

    Good alarm management practice includes:

    • Rationalization: Each alarm has a purpose, a defined operator response, and a priority.
    • Prioritization: Critical alarms stand out from advisory ones.
    • Limiting alarm floods: Alarms during upsets should be manageable and not overwhelm the operator.
    • Change control: Alarm limits and priorities are not changed without review.
    • Performance monitoring: Alarm rates and frequently occurring “bad actors” are tracked and corrected.

    Recognized guidance includes ISA-18.2 and IEC 62682. Alarms should not be used as a substitute for a SIF where independent, automatic protection is required.

    Management of Change (MOC)

    Changes to equipment, procedures, or operating conditions can invalidate safety analyses. Management of change (MOC) ensures that changes are reviewed for safety impact before implementation. A change that seems minor can affect the validity of a HAZOP, an SIS design, or a relief system sizing.

    An effective MOC process includes:

    • Defining what counts as a change (temporary and permanent, including software and set point changes).
    • Reviewing safety, health, and environmental impact before approval.
    • Updating documentation such as P&IDs, procedures, cause-and-effect charts, and relief calculations.
    • Training affected personnel before the change is implemented.
    • Closing out temporary changes so they do not become permanent by default.

    Human Factors

    Human factors engineering considers how people interact with systems. It covers control room design, alarm presentation, procedure clarity, and workload. Good human factors design reduces the likelihood of operator error.

    Practical examples include clear and consistent control displays, logical equipment labeling, procedures that can be followed under stress, sensible shift and staffing arrangements, and operator input during design reviews. Even a well-engineered safety system can fail if operators cannot understand or use it when it matters.

    Emergency Response Planning

    Even well-designed plants must be prepared for incidents. Emergency response planning connects the plant’s safety systems with people and procedures.

    Key elements:

    • Emergency plan: Defined roles, communication, and decision authority.
    • Scenarios: Plans based on credible incidents identified in the hazard analysis (fire, toxic release, explosion, spill).
    • Alarms and communication: Ways to alert everyone on site and contact external services.
    • Evacuation and muster: Clear routes, assembly points, and headcount procedures.
    • Equipment and resources: Fire fighting equipment, first aid, spill response, and personal protective equipment.
    • Training and drills: Regular exercises, including coordination with local emergency services.
    • Review: Lessons from drills and incidents are captured and applied.

    Safety Culture

    Safety systems are only effective if they are supported by a strong safety culture.

    Key elements of safety culture:

    • Leadership commitment: Safety starts at the top.
    • Employee involvement: Workers at all levels participate in safety.
    • Open reporting: Incidents and near-misses are reported without fear.
    • Learning organization: Lessons are captured and applied.
    • Continuous improvement: Safety performance is measured and improved.

    Safety culture is not a document. It is the way people behave when no one is watching.

    Common Mistakes in Safety System Design

    Even experienced designers make mistakes. Common ones include:

    • Incomplete hazard identification: Missing hazards that later cause incidents.
    • Underestimating risk: Assuming hazards are less likely or less severe than they are.
    • Inadequate independence: SIS not truly independent of the basic control system, or protection layers that share a common cause of failure.
    • Poor proof testing: Safety systems that are not tested, or tested incorrectly.
    • Ignoring human factors: Designing systems that operators cannot use effectively.
    • Poor alarm management: Alarm floods and nuisance alarms that operators learn to ignore.
    • Weak management of change: Modifications that quietly invalidate earlier safety analyses.
    • Uncontrolled bypasses: Protection disabled and never restored.
    • Weak safety culture: Systems in place, but not respected or followed.
    • Insufficient documentation: Making it difficult to maintain and verify safety systems.

    These mistakes can have catastrophic consequences. They must be avoided through careful design, testing, and management.

    How Japanese EPC Firms Approach Safety Systems

    Japanese engineering firms are known for their disciplined approach to safety. Common characteristics include:

    • Thorough hazard identification: Hazards are identified systematically, with input from all disciplines.
    • Conservative design margins: Safety systems are designed with adequate margin for uncertainty.
    • Detailed documentation: Safety analyses, designs, and test records are carefully maintained.
    • Comprehensive testing: Safety systems are tested thoroughly before startup and periodically thereafter.
    • Disciplined change control: Changes are reviewed and documented before implementation.
    • Strong safety culture: Safety is embedded in every aspect of design, construction, and operation.
    • Long-term focus: Safety systems are maintained and improved over the plant’s life.

    For plant owners, this often means fewer incidents, better regulatory compliance, and a safer workplace.

    How to Evaluate Safety System Design

    When reviewing safety system design, ask:

    Question Why It Matters
    Have all hazards been identified? You cannot protect against unknown hazards
    Has risk been assessed consistently against defined criteria? Determines how much protection is needed
    Are protection layers independent? Ensures defense in depth
    Is the SIS designed and verified to the required SIL? Ensures safety functions are reliable enough
    Is there a functional safety management plan? Ensures reliability is maintained over the lifecycle
    Are fire and gas detection systems adequate? Detects incidents early
    Are relief systems properly sized and routed? Prevents overpressure failure
    Are alarms rationalized and manageable? Keeps operators effective during upsets
    Is there an MOC process, and is it followed? Keeps analyses valid after changes
    Is proof testing planned and performed? Verifies that safety systems work
    Are bypasses controlled? Prevents protection from being lost unnoticed
    Are emergency response plans tested? Ensures people can act when needed
    Is safety culture strong? Ensures systems are respected and followed

    A plant that addresses these questions is likely to have effective safety systems.

    Key Takeaways

    • Safety systems protect people, the environment, and the plant
    • Layers of protection provide defense in depth, but only if the layers are truly independent
    • Hazard identification is the foundation of safety design
    • Safety instrumented systems must be independent and designed to the required SIL
    • Functional safety management, alarm management, and management of change keep safety systems effective over the plant’s life
    • Human factors design reduces the likelihood of operator error
    • Fire protection includes both passive and active systems
    • Pressure relief systems are the last line of defense against overpressure
    • Safety culture determines whether systems are respected and followed
    • Japanese EPC firms emphasize thorough hazard identification and comprehensive testing

    Conclusion

    Safety systems are essential to protecting people, the environment, and the plant itself. For small to medium-scale industrial plants, safety system design deserves careful attention from the earliest stages of design.

    By focusing on hazard identification, risk assessment, layers of protection, SIS design and functional safety management, fire protection, alarm management, management of change, and safety culture, owners and designers can ensure that the plant operates safely throughout its life.

  • Spare Parts Management for Industrial Plants: Strategies for Reliability and Cost Control

    Spare Parts Management for Industrial Plants: Strategies for Reliability and Cost Control

    Every plant faces the same dilemma with spare parts. Stock too much, and capital sits on shelves, inventory costs rise, and parts may degrade before they are used. Stock too little, and a single missing part can idle the plant for weeks while waiting for delivery.

    Spare parts management is the discipline of finding the right balance: having the parts you need, when you need them, without tying up more capital than necessary. For small to medium-scale industrial plants, this balance is especially critical because there is less redundancy and fewer resources to absorb the consequences of either extreme.

    This article covers the key strategies for effective spare parts management, from categorization and criticality analysis to inventory optimization, inventory accuracy, procurement of spares for new equipment, and obsolescence management.

    Why Spare Parts Management Matters

    Spare parts management directly affects plant performance.

    Factor Impact of Good Spare Parts Management Impact of Poor Spare Parts Management
    Availability Parts available when needed Extended downtime waiting for parts
    Maintenance cost Controlled, predictable Emergency purchases at premium prices
    Capital tied up Optimized inventory Excess inventory or stockouts
    Equipment life Parts replaced on schedule Delayed maintenance shortens equipment life
    Production Minimal disruption Lost production during extended outages
    Safety Safety-critical parts replaced promptly Pressure to run degraded equipment or improvise repairs

    For plant owners, spare parts management is where reliability and cost control meet. Getting it right means the plant can respond quickly to failures without carrying excessive inventory.

    The Spare Parts Challenge

    Spare parts management involves balancing competing objectives:

    • Availability: Parts must be available when needed.
    • Cost: Inventory ties up capital and incurs carrying costs.
    • Space: Storage space is limited, especially in small plants.
    • Obsolescence: Parts may become outdated or unavailable over time.
    • Deterioration: Some parts degrade or reach shelf-life limits during storage.

    The goal is neither to minimize inventory nor to maximize availability. It is to find the balance that minimizes total cost, including the cost of downtime, while maintaining acceptable reliability.

    Categories of Spare Parts

    Spare parts categories for industrial plants

    Not all spare parts are the same. Different categories require different management strategies.

    Category Description Typical Examples Strategy
    Consumables Used regularly, low cost Filters, lubricants, gaskets, belts Reorder on usage, keep modest stock
    Critical spares Essential for operation, may have long lead times Pump internals, control valves, instrument components Stock based on lead time and criticality
    Insurance spares Expensive items with low failure probability but severe consequences Turbine rotors, large motors, transformers Justify by comparing holding cost with expected downtime cost
    Rotables Components swapped out and repaired Motors, pumps, gearboxes Maintain pool, track repair status
    Capital spares Very high-cost items, rarely needed, often capitalized Major equipment, spare generators Justify with detailed risk analysis
    Strategic spares Parts at risk of obsolescence Proprietary parts, discontinued items Purchase before unavailability

    The boundary between insurance and capital spares varies by organization. Insurance spares are defined by their risk profile (low probability, high consequence), while capital spares are defined by their cost and accounting treatment. Many items, such as a main transformer, are both.

    Each category requires a different approach. Treating all parts the same leads to either excess inventory or stockouts.

    Justifying Insurance Spares

    Insurance spares are justified by comparing the cost of holding the part against the expected cost of downtime if the part is not available. The expected cost is the probability of failure over the planning period, multiplied by the cost of the resulting outage. The outage cost depends on how long the plant would be down, which is driven largely by the lead time to obtain a replacement, multiplied by the cost of lost production per day. If the expected cost exceeds the annual holding cost, the spare is justified.

    A simple illustration: a large motor has a 2% chance of failing in any given year, a replacement lead time of 26 weeks (182 days), and lost margin of $20,000 per day. The expected annual downtime cost is 0.02 × 182 × $20,000 = $72,800. If the annual holding cost of the spare (capital cost, storage, insurance, and preservation) is less than this figure, the spare is justified. If it is much higher, alternatives such as a shared pool, supplier-held stock, or a faster repair contract may be more economical.

    Note that expected-value logic can understate the case for rare but catastrophic events. Where the consequence threatens the viability of the business or safety, owners often stock the spare regardless of the calculated result.

    Criticality Analysis

    Spare parts criticality matrix for industrial plants

    Criticality analysis determines which spare parts deserve the most attention. It considers:

    • Equipment criticality: How important is the equipment to plant operation, safety, and environmental compliance?
    • Failure likelihood: How likely is the part to fail?
    • Lead time: How long does it take to obtain the part?
    • Cost: What is the cost of the part versus the cost of downtime?
    • Availability: Is the part readily available or scarce?
    • Redundancy: Is there a standby unit that could carry the load?

    A simple criticality matrix:

    Low Lead Time High Lead Time
    High Equipment Criticality Stock minimum; reliable reorder Stock based on risk analysis
    Low Equipment Criticality Reorder on demand Evaluate cost versus risk

    Criticality analysis helps direct limited inventory budget to the parts that matter most. It works best when the equipment criticality ranking is shared with the maintenance strategy, so that the same assets that receive the most preventive attention also receive the most spares attention.

    Determining Stock Levels

    Stock levels depend on several factors.

    Key inputs:

    • Lead time: How long does it take to obtain the part?
    • Consumption rate: How often is the part used?
    • Criticality: What happens if the part is not available?
    • Cost: What is the cost of holding versus not holding?
    • Reliability: How likely is the part to fail?

    Stock level approaches:

    Approach Description When to Use
    Min-max Reorder when stock falls to the minimum; order up to the maximum Simple, widely used
    Reorder point Order when stock reaches expected demand during lead time plus safety stock When demand is predictable
    Economic order quantity (EOQ) Order size that minimizes the sum of ordering and holding costs, √(2 × annual demand × cost per order ÷ annual holding cost per unit) When demand is stable and continuous
    Criticality-based Stock based on criticality and consequence, not just usage For critical and insurance spares

    Statistical methods work well for consumables with steady demand. They work poorly for critical spares, which are used rarely and irregularly. For these items, the decision should rest on criticality, lead time, and failure consequence rather than historical consumption. Zero consumption does not mean a part is unnecessary.

    For small plants, a min-max or criticality-based approach is often the most practical.

    Lead Time Considerations

    Lead time is often the single most important factor in spare parts management.

    Lead time components:

    • Requisition and approval: Time to raise and approve a purchase order.
    • Manufacturing: Time for the supplier to manufacture or assemble.
    • Shipping: Time for transport.
    • Customs and clearance: Time for import procedures (for international suppliers).
    • Receiving and inspection: Time to receive and verify the part.

    For long-lead items, the lead time may exceed the time the plant can afford to be down. These items justify stocking, even at high cost.

    Lead time strategies:

    • Stock items with lead times longer than acceptable downtime.
    • Identify alternate suppliers for critical parts.
    • Consider local stock or consignment arrangements.
    • Pre-approve purchasing authority for emergency orders to shorten the requisition step.
    • Monitor lead times regularly; they change over time, and quoted lead times are often optimistic.

    Inventory Optimization

    Inventory optimization balances availability and cost.

    Key concepts:

    • Carrying cost: The cost of holding inventory (capital, space, insurance, taxes, deterioration). Annual carrying costs are commonly estimated at 15% to 30% of inventory value.
    • Ordering cost: The cost of placing and processing orders.
    • Stockout cost: The cost of not having a part when needed (downtime, emergency purchases, expediting).
    • Service level: The probability of having a part when needed.

    Optimization approaches:

    • ABC analysis: Classify parts by annual consumption value (unit cost multiplied by annual usage). A items are the small share of parts that account for most of the value and receive close management; C items are the large share of parts that account for little value and receive simple management.
    • VED analysis: Classify parts by criticality (Vital, Essential, Desirable).
    • FSN analysis: Classify parts by movement (Fast, Slow, Non-moving).
    • Combined analysis: Use ABC and VED together to prioritize. A vital C item, such as a low-cost relay whose failure stops the plant, deserves more attention than its value suggests.

    For small plants, a combined ABC-VED analysis is often the most practical approach.

    Inventory Accuracy

    Inventory records are only useful if they are accurate. Inventory accuracy is essential: a system that says a part is in stock when it is not is worse than having no system, because the shortfall is discovered during a breakdown.

    Regular cycle counting, which means counting a portion of the inventory on a rotating basis, helps maintain accuracy without the disruption of full physical inventories. A common approach is to count A and vital items more frequently (for example, quarterly) and C items less often (for example, annually).

    Good practices for accuracy include:

    • Controlled access to the storeroom, with all issues and returns recorded.
    • Unique part numbers and clear bin locations.
    • Investigating discrepancies to find root causes rather than simply adjusting the record.
    • Tracking accuracy as a performance measure.

    Storage and Preservation

    Spare parts must be stored correctly to remain usable when needed.

    Storage considerations:

    • Environment: Temperature, humidity, and contamination control.
    • Packaging: Original packaging or equivalent protection.
    • Handling: Proper equipment and procedures for heavy or delicate parts.
    • Identification: Clear labeling and inventory records.
    • Access: Parts should be accessible without excessive handling.
    • Shelf life: Date-coded items (elastomers, adhesives, lubricants, batteries) should be issued first-in, first-out and checked before use.

    Preservation requirements:

    • Rotating equipment: Periodic turning or lubrication, following the manufacturer’s instructions.
    • Elastomers: Protection from heat, light, and ozone.
    • Electronics: Protection from moisture and static.
    • Chemicals: Proper containment and segregation.
    • Batteries: Periodic charging or replacement.

    Parts that degrade in storage create false confidence. A spare that fails on installation is worse than a known gap, because the team believed the risk was covered. Periodic inspection or testing of critical spares closes this gap.

    Spare Parts for New Equipment

    When specifying new equipment, include spare parts requirements in the procurement contract. Vendors can often provide recommended spares lists, and including them in the original order is usually cheaper than purchasing them later.

    Recommended spares lists are typically divided into:

    • Commissioning spares: Parts likely to be needed during installation, startup, and commissioning.
    • Initial or operating spares: Parts recommended for the first period of operation, often one to two years.
    • Capital or insurance spares: Long-lead or high-value items held against major failure.

    Vendor lists should be treated as a starting point, not a final answer. Review them against the plant’s own criticality analysis, existing inventory, and operating conditions. Vendors may over-recommend, while a plant with standardized equipment may already hold suitable parts.

    Additional contract provisions worth considering:

    • Guaranteed availability of spares for a defined period (for example, 10 to 15 years).
    • Advance notice of discontinuation, with a last-time buy option.
    • Price protection or agreed price lists for spares.
    • Delivery of spare parts documentation and part numbers with the equipment.
    • Standardization of equipment types where possible, to reduce the variety of spares required.

    Cannibalization

    In some plants, parts are removed from one piece of equipment to keep another running. Cannibalization, which is removing parts from one asset to keep another running, is sometimes necessary in an emergency, but it should be tracked. A cannibalized asset becomes a future risk if it is not restored.

    Good practice includes:

    • Requiring formal approval for cannibalization.
    • Recording the removal in the CMMS against the donor asset.
    • Raising a replacement order immediately, so that the donor is restored.
    • Tracking the number of open cannibalizations as an indicator of spares shortfall.

    Frequent cannibalization usually signals that stock levels or the procurement process need attention.

    Obsolescence Management

    Parts become obsolete when manufacturers discontinue them or when technology changes. Obsolescence is a growing problem as equipment lifecycles lengthen, particularly for electronics and control systems.

    Obsolescence risks:

    • Discontinued parts: No longer manufactured or supported.
    • Technology changes: Old technology replaced by new.
    • Supplier changes: Supplier exits the business or changes product lines.
    • Regulatory changes: Parts no longer compliant with regulations.

    Obsolescence strategies:

    • Identify at-risk parts: Which parts are likely to become obsolete? Ask vendors for lifecycle status of control systems and instruments.
    • Last-time buy: Purchase sufficient stock before discontinuation, taking care to estimate lifetime demand and storage conditions.
    • Alternate sources: Identify substitute parts or suppliers.
    • Redesign: Modify equipment to use available parts.
    • Reverse engineering: Manufacture equivalents when needed, subject to quality, safety, and intellectual property considerations.
    • Refurbished or reclaimed parts: Consider certified refurbished items where new parts are unavailable.

    For small plants, obsolescence is often overlooked until a part becomes unavailable. Proactive identification and last-time buys can prevent future problems.

    Spare Parts and CMMS

    A computerized maintenance management system (CMMS) is essential for effective spare parts management.

    CMMS functions for spare parts:

    • Inventory tracking: Current stock levels, locations, and values.
    • Reorder management: Automatic reorder when stock falls below minimum.
    • Usage history: Which parts are used, how often, and on which equipment.
    • Bill of materials: Linking parts to the equipment that uses them, to support criticality analysis and identify shared spares.
    • Work order integration: Reserving and issuing parts against planned work.
    • Supplier management: Supplier details, lead times, and pricing.
    • Cost tracking: Parts cost per equipment, per area, per period.
    • Reporting: Stock status, usage trends, obsolescence risk.

    Without a CMMS, spare parts management relies on memory and manual records, which leads to errors and inefficiencies.

    Supplier Management

    Suppliers are partners in spare parts management.

    Key considerations:

    • Reliability: Does the supplier deliver on time and to specification?
    • Lead time: How long does the supplier take to deliver?
    • Pricing: Is the pricing competitive and transparent?
    • Technical support: Does the supplier provide technical assistance?
    • Stocking arrangements: Does the supplier hold stock on your behalf?
    • Consignment: Can parts be held on consignment (paid only when used)?
    • Authenticity: Are parts genuine and traceable, particularly for pressure-retaining and safety-critical items?

    Supplier strategies:

    • Develop relationships with key suppliers.
    • Identify alternate suppliers for critical parts.
    • Negotiate stocking or consignment arrangements.
    • Explore pooling or sharing arrangements with neighboring plants for expensive, rarely used items.
    • Monitor supplier performance.

    For small plants, a few reliable suppliers with strong support are often better than many suppliers with weaker relationships.

    Measuring Performance

    What is measured tends to improve. Useful spare parts performance indicators include:

    Indicator What It Shows
    Stock availability (service level) How often a needed part is in stock
    Inventory turnover Annual usage value divided by average inventory value
    Inventory accuracy Match between records and physical counts
    Stockouts causing downtime Direct cost of gaps
    Emergency purchases Frequency and premium paid
    Obsolete or dead stock Capital tied up in unused items
    Open cannibalizations Hidden shortfalls

    Low turnover is not automatically bad for critical and insurance spares, which are held for rare events. Judge those on criticality, and judge consumables on turnover.

    Common Mistakes in Spare Parts Management

    Even experienced teams make mistakes. Common ones include:

    • Stocking everything: Tying up capital in parts that may never be used.
    • Stocking nothing: Risking extended downtime for lack of a critical part.
    • Ignoring lead time: Discovering too late that a part takes months to obtain.
    • No criticality analysis: Treating all parts the same.
    • Poor storage: Parts degrade in storage and are unusable when needed.
    • Inaccurate records: Trusting stock counts that do not match the shelf.
    • Untracked cannibalization: Leaving donor equipment unrestored.
    • Ignoring spares at purchase: Missing the chance to buy spares cheaply with new equipment.
    • No obsolescence planning: Discovering a part is discontinued when it fails.
    • No CMMS: Relying on memory and manual records.
    • No supplier relationships: Struggling to obtain parts quickly when needed.

    These mistakes are costly to correct after a failure. They are much cheaper to avoid through good planning.

    How Japanese EPC Firms Approach Spare Parts Management

    Japanese engineering firms are often noted for their disciplined approach to spare parts management. Common characteristics include:

    • Thorough criticality analysis: Parts are categorized by criticality and risk.
    • Detailed planning: Stock levels, lead times, and obsolescence are planned in advance, often as part of the project handover.
    • Strong supplier relationships: Long-term relationships with reliable suppliers.
    • Comprehensive documentation: Inventory records, usage history, and supplier data are carefully maintained.
    • Proactive obsolescence management: At-risk parts are identified and addressed early.
    • Long-term focus: Spare parts management is treated as a long-term commitment, not a short-term cost.

    For plant owners, this often means higher availability, lower emergency costs, and fewer unpleasant surprises.

    How to Evaluate Spare Parts Management

    When reviewing spare parts management, ask:

    Question Why It Matters
    Are parts categorized by criticality? Focuses attention on the parts that matter
    Are stock levels based on lead time and criticality? Balances availability and cost
    Are insurance spares justified by risk analysis? Avoids both over- and under-investment
    Are inventory records accurate and cycle counted? Ensures the system can be trusted
    Is storage adequate for preservation? Ensures parts are usable when needed
    Were spares specified with new equipment? Captures lower prices and avoids later gaps
    Is cannibalization tracked and reversed? Prevents hidden risk
    Is obsolescence managed proactively? Prevents future unavailability
    Is a CMMS in place? Enables effective tracking and management
    Are supplier relationships strong? Ensures parts can be obtained quickly
    Is inventory reviewed regularly? Keeps stock levels aligned with needs

    A plant that addresses these questions is likely to have effective spare parts management.

    Conclusion

    Spare parts management is a critical but often overlooked aspect of plant reliability and cost control. For small to medium-scale industrial plants, the right balance between availability and cost is essential.

    By categorizing parts, analyzing criticality, optimizing stock levels, keeping records accurate, specifying spares with new equipment, managing obsolescence, and building supplier relationships, owners and maintenance teams can ensure that parts are available when needed, without tying up excessive capital.

    Key Takeaways

    • Spare parts management balances availability and cost
    • Categories include consumables, critical spares, insurance spares, rotables, capital spares, and strategic spares
    • Insurance spares are justified by comparing holding cost with the expected cost of downtime
    • Criticality analysis directs attention to the parts that matter most
    • Lead time is often the single most important factor
    • Accurate inventory records, maintained through cycle counting, make the whole system trustworthy
    • Specify spares in the procurement contract for new equipment; it is usually cheaper than buying later
    • Track cannibalization, because a cannibalized asset is a future risk
    • Obsolescence management prevents future unavailability
    • A CMMS is essential for effective tracking and management
    • Japanese EPC firms emphasize thorough criticality analysis and proactive obsolescence management
  • Failure Modes and Effects Analysis (FMEA): A Practical Guide for Industrial Plants

    Failure Modes and Effects Analysis (FMEA): A Practical Guide for Industrial Plants

    Most plant failures are discovered the hard way, after they happen. Equipment stops working, production is lost, and the maintenance team rushes to repair it. Root Cause Analysis (RCA) helps you learn from these failures. But what if you could identify problems before they occur?

    Failure Modes and Effects Analysis (FMEA) is a structured, proactive method for identifying how equipment, systems, or processes can fail, and what the consequences would be. Instead of reacting to failures, FMEA helps you anticipate them and prevent them or mitigate their effects.

    For small to medium-scale industrial plants, FMEA is especially valuable because it focuses attention on the failures that matter most. It directs limited maintenance and engineering resources toward the equipment and failure modes with the highest risk.

    This article explains what FMEA is, how it works, and how to apply it practically in an industrial plant.

    What Is FMEA?

    FMEA is a systematic method for evaluating a system, design, or process to identify:

    • Functions: What the item is supposed to do.
    • Failure modes: The ways in which it can fail to do so.
    • Failure effects: What happens when each failure mode occurs.
    • Failure causes: What leads to each failure mode.
    • Controls: What is currently in place to prevent or detect each failure mode.

    FMEA was originally developed by the US military in the late 1940s (the procedure MIL-P-1629, issued in 1949) and has since been adopted across many industries, including automotive, aerospace, medical devices, and power generation.

    The purpose of FMEA is to:

    • Identify potential failures before they occur.
    • Assess the risk associated with each failure.
    • Prioritize actions to reduce risk.
    • Document the analysis for future reference.

    Related standards and terms

    Several standards and guidelines govern FMEA practice. Plant teams most often encounter:

    Reference Relevance
    IEC 60812 General international standard for FMEA and FMECA
    MIL-STD-1629A Original US military procedure (now withdrawn, but still widely referenced)
    SAE J1739 and AIAG & VDA FMEA Handbook Automotive practice; source of the Action Priority method
    SAE JA1011 / JA1012 Criteria and guide for Reliability-Centered Maintenance (RCM), where FMEA is a core step

    You may also see the term FMECA (Failure Modes, Effects, and Criticality Analysis). It is FMEA with an added step that ranks the criticality of each failure mode. In practice, most plant FMEAs already include this ranking through severity and RPN, so the two terms are often used interchangeably.

    FMEA vs. RCA

    FMEA and RCA are complementary, but they serve different purposes.

    Aspect FMEA RCA
    Timing Before failure occurs (proactive) After failure occurs (reactive)
    Purpose Identify and prevent potential failures Understand and prevent recurrence of actual failures
    Approach Analyzes what could go wrong Analyzes what did go wrong
    Output Risk-ranked list of failure modes with actions Root cause(s) and corrective actions

    FMEA is proactive; RCA is reactive. Together they form a complete approach to reliability: FMEA prevents failures from happening, and RCA prevents them from happening again.

    The two also feed each other. Failures investigated through RCA reveal failure modes and causes that the FMEA missed, and the FMEA should be updated accordingly. Conversely, an existing FMEA gives an RCA team a head start by listing known failure modes and causes.

    Types of FMEA

    FMEA is used in different forms, depending on the application.

    Type Focus Typical Use
    Design FMEA (DFMEA) Product or equipment design New equipment design, modifications
    Process FMEA (PFMEA) Manufacturing or operational processes Production processes, maintenance procedures
    System FMEA Systems and subsystems Plant systems, control systems
    Equipment FMEA Individual equipment items Critical equipment, rotating machinery

    For plant applications, system FMEA and equipment FMEA are most common. Design FMEA is used when specifying new equipment or modifying existing designs.

    FMEA for new equipment

    FMEA is particularly valuable during design or procurement of new equipment. Identifying failure modes before the equipment is built or purchased allows design changes that are far cheaper than modifications after installation. Typical outcomes include adding redundancy, specifying better materials or seals, requiring condition-monitoring instrumentation from the vendor, or including FMEA deliverables in the supplier’s scope.

    The FMEA Process

    Ten-step FMEA process diagram for industrial plants

    FMEA follows a structured process, typically performed by a cross-functional team.

    Step Description
    1. Define the scope What system, equipment, or process is being analyzed?
    2. Assemble the team Who has knowledge of the system, its operation, and its failure modes?
    3. Identify functions What is the system or equipment supposed to do?
    4. Identify failure modes How can it fail to perform its function?
    5. Identify effects What happens when each failure mode occurs?
    6. Identify causes What leads to each failure mode?
    7. Identify controls What is currently in place to prevent or detect the failure?
    8. Assess risk How serious is the risk, considering severity, occurrence, and detection?
    9. Prioritize actions Which failure modes need action first?
    10. Implement and review Assign actions, implement them, and review effectiveness.

    FMEA is not a one-time exercise. It should be reviewed when equipment, processes, or operating conditions change.

    Assembling the team

    A good FMEA team typically includes:

    • A facilitator who knows the method and keeps the session focused.
    • Operations personnel, who know how the equipment behaves in practice.
    • Maintenance personnel, who know how it fails and how it is repaired.
    • Engineering staff, who know the design and its limits.
    • Safety or environmental representatives, where consequences may involve people or releases.
    • Vendor or specialist input, where the equipment is unfamiliar or highly specialized.

    Teams of four to seven people generally work best. Larger groups slow down; smaller groups miss perspectives.

    Documenting the analysis: the FMEA worksheet

    FMEA is typically documented on a worksheet with columns for function, failure mode, effects, severity, causes, occurrence, current controls, detection, RPN, recommended actions, and responsibility. Spreadsheets are commonly used, though specialized software is available for larger analyses.

    Whatever the tool, the worksheet should use consistent scales and terminology, and it should be a living document that is stored where the maintenance and engineering teams can find it.

    Identifying Failure Modes

    A failure mode is the way in which a system, equipment, or process fails to perform its intended function.

    Types of failure modes:

    • Complete failure: Equipment stops working entirely.
    • Partial failure: Equipment works, but not at full capacity.
    • Intermittent failure: Equipment alternates unpredictably between working and not working.
    • Degraded performance: Equipment works, but with reduced efficiency, accuracy, or output.
    • Unintended operation: Equipment operates when it should not.
    • Failure to operate on demand: Equipment fails to start or act when needed, as with standby pumps and safety devices.
    • Failure to stop: Equipment continues to run after it should have stopped.

    For each function, the team asks: how could this function fail? The answers are the failure modes.

    It is important to distinguish a failure mode from its cause. “Bearing seizure” describes how the pump stops working (failure mode). “Loss of lubrication” is why the bearing seized (cause). Mixing the two makes the worksheet confusing.

    Identifying Failure Effects

    For each failure mode, the team identifies the effects: what happens when the failure occurs.

    Effects should be considered at multiple levels:

    • Local effects: What happens to the equipment itself?
    • System effects: What happens to the system the equipment is part of?
    • Plant effects: What happens to the plant as a whole?
    • Safety effects: Could the failure cause injury?
    • Environmental effects: Could the failure cause an environmental release?

    Effects should be described specifically. “Pump fails” is not an effect. “Pump fails, causing loss of cooling water flow to the condenser, resulting in turbine trip and 8-hour plant shutdown” is an effect.

    Identifying Failure Causes

    For each failure mode, the team identifies the causes: what leads to the failure.

    Common causes:

    • Design weaknesses: Inadequate material, undersized components, poor layout.
    • Manufacturing defects: Poor workmanship, incorrect assembly.
    • Installation errors: Incorrect alignment, improper torque.
    • Operating errors: Incorrect setpoints, missed procedures.
    • Maintenance errors: Missed tasks, incorrect parts, poor workmanship.
    • Wear and degradation: Normal aging, corrosion, fatigue.
    • External events: Power loss, weather, contamination.

    Causes should be specific enough to allow corrective action. “Operator error” is not a cause. “Operator fails to open valve V-101 before starting pump P-101” is a cause.

    Risk Assessment: Severity, Occurrence, Detection

    Risk priority number calculation in FMEA

    FMEA uses three factors to assess risk:

    Factor What It Measures Scale
    Severity (S) How serious are the effects? 1 (minor) to 10 (catastrophic)
    Occurrence (O) How likely is the cause to occur? 1 (unlikely) to 10 (frequent)
    Detection (D) How likely is the failure to be detected before effects occur? 1 (certain detection) to 10 (no detection)

    The Risk Priority Number (RPN) is calculated as:

    RPN = Severity × Occurrence × Detection

    Higher RPN values indicate higher risk and greater priority for action. RPN ranges from 1 to 1,000.

    Defining the scales

    The scales must be defined in advance and applied consistently. Below is an illustrative severity scale for an industrial plant; each plant should adapt it to its own consequences.

    Rating Severity Description (example)
    1-2 No noticeable effect on operation
    3-4 Minor performance loss; repaired during routine maintenance
    5-6 Partial loss of output or short unplanned shutdown
    7-8 Extended shutdown, major equipment damage, or environmental incident
    9-10 Serious injury, fatality, or major environmental or safety event

    Occurrence and detection scales should be defined similarly, for example by expected frequency (once in 10 years vs. monthly) and by the strength of existing controls (continuous online monitoring vs. reliance on an operator noticing).

    A worked example

    Consider a cooling water pump serving a plant condenser:

    Failure Mode Effect Cause S O D RPN
    Bearing seizure Loss of cooling flow; turbine trip; 8-hour shutdown Loss of lubrication 8 5 6 240
    Suction strainer blockage Reduced flow; reduced output Debris ingress 7 4 4 112
    Mechanical seal leak Water leakage; minor repair Seal wear 5 6 3 90

    The bearing seizure ranks highest. The team recommends installing vibration and bearing-temperature monitoring, which improves detection from 6 to 3. The revised RPN is 8 × 5 × 3 = 120. Note that this reduces risk by improving detection, but severity and occurrence are unchanged. If the team can also improve lubrication practices, occurrence falls too, and the risk reduction is more durable.

    Limits of RPN

    RPN is a prioritization tool, not an absolute measure of risk. It has well-known limitations:

    • Different combinations of scores can produce the same RPN. For example, 9 × 2 × 2 = 36 and 3 × 3 × 4 = 36, yet the first involves a far more severe consequence.
    • The rating scales are ordinal, so multiplying them is mathematically questionable.
    • The result is sensitive to small changes in individual scores.

    A failure mode with high severity but low RPN should still be addressed if the consequences are serious. For instance, a relief valve that fails to lift might score 10 × 2 × 3 = 60, which looks modest, yet the consequence is unacceptable.

    Action Priority (AP) as an alternative

    Some industries have adopted Action Priority (AP) as an alternative to RPN. AP uses the same three factors but ranks actions by severity first, then occurrence and detection, avoiding some of the limitations of multiplying scores. In the AIAG & VDA method, for example, a lookup table assigns each combination of ratings a High, Medium, or Low priority, rather than a single number. Plants may use either approach, provided the choice is consistent and severity is never overlooked.

    Prioritizing Actions

    Once risks are ranked, the team prioritizes actions.

    Priority should consider:

    • Severity: Failures with high severity (safety, environmental, major production loss) should be addressed first, regardless of RPN.
    • RPN or AP: Failures with high RPN (or High AP) should be addressed before those with low ratings.
    • Cost-effectiveness: Actions should be proportionate to the risk being reduced.
    • Feasibility: Actions should be practical to implement.

    Types of actions:

    • Eliminate the failure mode: Redesign to remove the possibility of failure.
    • Reduce severity: Add protective systems, reduce consequences.
    • Reduce occurrence: Improve design, materials, or procedures.
    • Improve detection: Add monitoring, alarms, or inspections.

    Actions that eliminate or reduce risk at the source are generally preferred over those that rely on detection. Each action should have a named owner and a due date, and the failure mode should be re-scored once the action is complete to confirm the risk has actually fallen.

    Linking FMEA to maintenance

    FMEA findings should be linked to the maintenance program. Failure modes that require detection or prevention should have corresponding tasks in the preventive or predictive maintenance plan. For example, if the FMEA identifies bearing seizure as a high-priority mode, the maintenance plan should include lubrication checks, oil analysis, and vibration monitoring at defined intervals. Without this link, the FMEA remains a document rather than a driver of reliability.

    FMEA in Practice

    FMEA can be applied at different levels, depending on the scope and resources available.

    Approach Scope When to Use
    Full FMEA Detailed analysis of all failure modes Critical systems, new designs
    Streamlined FMEA Focused analysis using templates and experience Most plant equipment
    Criticality-based FMEA Analysis of critical equipment only Small plants with limited resources
    Process FMEA Analysis of operational or maintenance processes Procedures, work instructions

    For small to medium-scale plants, a criticality-based or streamlined approach is often the most practical. Full FMEA on every piece of equipment is rarely justified.

    Where to start

    A practical starting sequence for a plant new to FMEA:

    1. Rank equipment by criticality, considering safety, environmental impact, production loss, and repair cost.
    2. Select the top few items, such as major rotating machinery, key utilities, and critical control loops.
    3. Use generic failure mode lists from equipment vendors, industry databases, and your own maintenance history as a starting point, and then adapt them to your operating conditions.
    4. Run short, focused workshops, typically half a day per equipment item.
    5. Expand gradually as the team gains experience.

    When to trigger a review

    Beyond scheduled reviews, revisit the FMEA when:

    • A significant failure or near miss occurs (especially if the RCA reveals a failure mode not in the FMEA).
    • Equipment is modified, replaced, or moved to a different duty.
    • Operating conditions or fuel/feed quality change.
    • Maintenance strategies or spare parts policies change.

    FMEA and RCM

    FMEA is closely related to Reliability-Centered Maintenance (RCM). In fact, FMEA is a key tool within the RCM process.

    Aspect FMEA RCM
    Focus Identifying failure modes and their effects Determining maintenance requirements
    Scope Any system, design, or process Physical assets in their operating context
    Output Risk-ranked list of failure modes Maintenance program based on failure modes and consequences
    Relationship FMEA is a tool used within RCM RCM uses FMEA as part of its analysis

    If you have already performed RCM, much of the FMEA analysis is already done. If you have not, FMEA can be a good starting point for improving reliability.

    FMEA and Other Risk Tools

    FMEA is one of several risk-analysis tools, each suited to different questions:

    Tool Best For
    FMEA Equipment- and component-level failure modes and their effects
    HAZOP Process hazards and deviations in process systems
    Fault Tree Analysis (FTA) Tracing a specific top-level event back to its combinations of causes
    Bow-tie / LOPA Evaluating barriers and protection layers for major hazards

    FMEA works from causes toward effects (bottom-up), while fault tree analysis works from a defined event back toward causes (top-down). On critical systems the two are often used together.

    Common Mistakes in FMEA

    Even experienced teams make mistakes. Common ones include:

    • Analyzing too much: Trying to FMEA everything, which exhausts the team and dilutes the value.
    • Analyzing too little: Focusing only on obvious failure modes and missing important ones.
    • Vague failure modes: “Equipment fails” is not useful; “Pump seal leaks” is.
    • Ignoring severity: Prioritizing by RPN alone without considering safety or environmental consequences.
    • Inconsistent scoring: Using different scales or interpretations from one session to the next.
    • No team involvement: Missing knowledge from operations, maintenance, or engineering.
    • Scoring the same failure twice: Rating a control as effective without checking that it is actually performed.
    • No follow-through: Producing a report without implementing actions.
    • Treating FMEA as a one-time project: Failing to update the analysis as conditions change.

    These mistakes reduce the value of FMEA and can lead to its abandonment.

    How Japanese EPC Firms Approach FMEA

    Japanese engineering firms are known for their disciplined approach to reliability and risk analysis. Common characteristics include:

    • Thorough analysis: FMEA is performed carefully, with input from all relevant disciplines.
    • Focus on critical equipment: Resources are directed to equipment where failure matters most.
    • Detailed documentation: Analysis, decisions, and results are carefully recorded.
    • Integration with design: FMEA findings are fed back into design standards and future projects.
    • Continuous improvement: FMEA is reviewed and updated as conditions change.
    • Long-term focus: FMEA is treated as an ongoing practice, not a one-time project.

    For plant owners, this often means fewer unexpected failures, better-targeted maintenance, and a stronger safety record.

    How to Evaluate FMEA Readiness

    When considering FMEA for your plant, ask:

    Question Why It Matters
    Is the scope clearly defined? Focuses the analysis on what matters
    Is there a cross-functional team? Brings together operations, maintenance, and engineering
    Are failure modes specific? Enables meaningful analysis and action
    Are effects assessed at multiple levels? Captures safety, environmental, and production impacts
    Are the rating scales defined and applied consistently? Ensures prioritization is fair and repeatable
    Are actions specific and assigned? Ensures actions are implemented
    Are findings linked to the maintenance program? Turns analysis into practical reliability tasks
    Is the analysis documented and reviewed? Keeps the analysis current and useful

    A plant that addresses these questions is ready to benefit from FMEA.

    Conclusion

    Failure Modes and Effects Analysis is a proactive method for identifying how equipment, systems, or processes can fail, and what the consequences would be. It helps plants anticipate failures rather than react to them.

    For small to medium-scale industrial plants, FMEA, applied pragmatically, can improve reliability, reduce risk, and focus limited resources where they matter most. It is not a quick fix, but it is a proven approach for plants that want to get ahead of failures instead of chasing them.

    Key Takeaways

    • FMEA is a proactive method for identifying failure modes and their effects.
    • FMEA is distinct from RCA: one prevents failures, the other prevents recurrence.
    • The process includes scope definition, team assembly, function identification, failure mode identification, risk assessment, and action.
    • Risk is assessed using severity, occurrence, and detection (RPN), with Action Priority (AP) as an alternative that weights severity first.
    • Actions that eliminate or reduce risk at the source are preferred over those that rely on detection.
    • FMEA findings should be linked to the maintenance program and applied early, during design and procurement of new equipment.
    • FMEA is a key tool within RCM.
    • Japanese EPC firms emphasize thorough analysis and integration with design.
  • Root Cause Analysis (RCA): A Practical Guide for Industrial Plants

    Root Cause Analysis (RCA): A Practical Guide for Industrial Plants

    When equipment fails, the immediate response is usually to fix it and get the plant running again. That is necessary. But if the same failure keeps happening, or if the fix addresses only the symptom and not the underlying problem, the plant is caught in a cycle of repeated failures and repeated repairs.

    Root Cause Analysis (RCA) is a structured approach for finding out why a failure happened, not just what failed, and preventing it from happening again. It is one of the most valuable skills a plant team can develop, because it turns every significant failure into an opportunity to improve.

    For small to medium-scale industrial plants, RCA is especially important because there is less redundancy and fewer resources to absorb repeat failures. A pump that fails every few months is more than an inconvenience; it is a drain on maintenance resources and a threat to production.

    This article explains what RCA is, how it works, and how to apply it practically in an industrial plant.

    What Is Root Cause Analysis?

    Root Cause Analysis is a structured method for identifying the underlying causes of a problem and determining what can be done to prevent recurrence.

    The key idea is that most failures have more than one cause. There is usually a chain of events and conditions that led to the failure. RCA traces that chain back to the root: the fundamental cause or causes that, if addressed, would prevent the failure from happening again.

    RCA is not about assigning blame. It is about understanding what happened, why it happened, and what can be done to prevent it from happening again.

    RCA vs. Troubleshooting

    RCA is distinct from troubleshooting. Troubleshooting focuses on restoring operation as quickly as possible. RCA focuses on understanding why the failure occurred and preventing recurrence. Both are necessary, but they serve different purposes.

    Troubleshooting Root Cause Analysis
    Goal Restore operation Prevent recurrence
    Timing During the event After the plant is stable
    Time scale Minutes to hours Days to weeks
    Output A repair or workaround Corrective actions and lessons learned
    Question asked “What is wrong and how do we fix it?” “Why did this happen and how do we stop it happening again?”

    The two work together. Troubleshooting should also preserve evidence for the RCA that follows (see “Gathering Data” below).

    Three Types of Causes

    RCA distinguishes between three layers of cause:

    • Physical causes: The observable failure mechanism (a bearing seized, a seal leaked, a wire overheated).
    • Human causes: The actions or omissions that allowed the physical cause to occur (lubrication was skipped, a strainer was not cleaned).
    • Latent (system) causes: The weaknesses in procedures, design, training, planning, or management that made the human cause likely (no scheduled task, unclear procedure, no alarm).

    Effective RCA does not stop at the physical or human cause. It reaches the latent cause, because that is what can be fixed permanently.

    Why RCA Matters

    Without RCA, plants tend to repeat the same failures. Common patterns include:

    • Fixing symptoms, not causes: Replacing a failed bearing without addressing the misalignment that caused it to fail.
    • Blaming operators: Assuming human error without examining why the error was possible.
    • Skipping analysis: Restarting the plant as quickly as possible and moving on.
    • Applying the wrong fix: Making changes that do not address the real cause.

    RCA breaks these patterns by:

    • Identifying true causes: Not just the immediate cause, but the underlying causes.
    • Preventing recurrence: Addressing causes rather than symptoms.
    • Improving systems: Finding weaknesses in procedures, training, design, or management.
    • Capturing knowledge: Recording what was learned for future reference.

    For small plants, RCA helps avoid the cycle of repeated failures that consumes maintenance resources and disrupts production. Over time, it also reduces unplanned downtime, spare parts consumption, and emergency repair costs.

    When to Perform RCA

    Not every failure requires full RCA. Performing RCA on every minor issue wastes resources. Performing it on none means repeating failures.

    Triggers for RCA:

    Trigger Why It Matters
    Safety incident or near-miss Protects people and prevents recurrence
    Environmental release Ensures compliance and prevents recurrence
    Significant production loss Protects revenue and customer commitments
    Repeat failure Indicates the true cause has not been addressed
    High repair cost Justifies analysis to prevent recurrence
    Equipment criticality Failure of critical equipment affects the whole plant

    For small plants, a threshold approach works well: perform RCA on failures that meet defined criteria (for example, downtime over a certain number of hours, cost over a certain amount, or any safety incident).

    Why Near-Misses Matter

    Near-misses are valuable RCA triggers because they reveal weaknesses that could cause a more serious incident. Investigating near-misses is a proactive way to prevent future incidents.

    A near-miss costs nothing but attention, since no one was hurt and nothing was damaged. Yet the causal chain is often the same as in a serious accident; only the outcome differed. Plants that investigate near-misses learn from luck, rather than waiting to learn from loss.

    Matching Effort to the Problem

    A simple, tiered approach keeps RCA proportionate:

    Level Typical Trigger Approach
    Basic Minor repeat failure, low cost 5 Whys by the supervisor and one or two technicians; short record
    Standard Significant downtime or cost Cross-functional team; fishbone plus 5 Whys; formal report
    Major Serious safety, environmental, or high-consequence failure Facilitated team; fault tree or barrier analysis; management review

    The RCA Process

    Seven-step root cause analysis process diagram

    While different RCA methods exist, most follow a similar process.

    Step Description
    1. Define the problem What happened, when, where, and what was the impact?
    2. Gather data Collect evidence: operating data, maintenance records, interviews, physical evidence.
    3. Identify causes Use analytical methods to trace the chain of causes.
    4. Determine root cause(s) Identify the fundamental cause(s) that, if addressed, prevent recurrence.
    5. Develop corrective actions Define actions that address the root cause(s).
    6. Implement actions Assign responsibility, resources, and deadlines.
    7. Verify effectiveness Confirm that the actions prevented recurrence.

    RCA is not complete until the corrective actions are implemented and verified.

    Defining the Problem

    A well-written problem statement keeps the team focused. It should be factual and specific, and should not include assumed causes or blame. Compare:

    • Weak: “Operator error damaged Pump P-101.”
    • Strong: “Pump P-101 mechanical seal leaked on 14 March at 02:30, causing a 9-hour shutdown of Line 2 and an estimated production loss of X.”

    Include what happened, where, when, the extent of the impact, and how it was detected.

    The RCA Team

    For anything beyond a basic analysis, use a small cross-functional team, typically three to six people. Useful members include:

    • An operator who was on shift or familiar with the equipment
    • A maintenance technician or planner
    • An engineer (process, mechanical, or instrumentation as relevant)
    • A facilitator who keeps the process on track and ensures no one is blamed

    The facilitator should ideally not be the person responsible for the area under review. In a small plant, this may be a supervisor from another department.

    RCA Methods and Tools

    Several methods and tools are available. The choice depends on the complexity of the problem and the experience of the team.

    Method Description Best For
    5 Whys Asking “why” repeatedly until the root cause is found Simple problems
    Fishbone (Ishikawa) diagram Categorizing causes by type (people, method, machine, material, measurement, environment) Problems with multiple possible causes
    Fault tree analysis Working backward from the failure to identify contributing events and their logical relationships Complex systems with multiple failure paths
    Cause-and-effect matrix Scoring causes against defined criteria to prioritize which to investigate or address Prioritizing among many causes
    Barrier analysis Examining which barriers failed and why Safety and environmental incidents

    For most plant problems, 5 Whys and fishbone diagrams are sufficient. Fault tree analysis is used for complex or high-consequence failures.

    The 5 Whys

    The 5 Whys is the simplest RCA method. It involves asking “why” repeatedly until a root cause is found that can be fixed. Five is a guideline: some problems need three whys, others need seven.

    Example: Pump seal failure

    1. Why did the pump leak? → The seal failed.
    2. Why did the seal fail? → The seal faces were damaged.
    3. Why were the seal faces damaged? → The pump was running dry.
    4. Why was the pump running dry? → The suction strainer was blocked.
    5. Why was the suction strainer blocked? → It had not been cleaned on schedule.
    6. Why was it not cleaned on schedule? → The cleaning task was not in the preventive maintenance plan, and there was no differential pressure indication to show the strainer was fouling.

    Root causes: No scheduled strainer cleaning task, and no instrumentation to warn of a blocked strainer.

    Note that the root cause is not “the seal failed” (the immediate cause), and it is not “the operator forgot” either. Both stop short of the system weakness that allowed the failure to happen.

    Corrective actions might include: adding the cleaning task to the maintenance plan, reviewing and improving the procedure, installing a differential pressure alarm on the strainer, adding a low-flow trip on the pump, and training operators on the reason for the task.

    Limitations of 5 Whys: It follows a single chain, so it can miss parallel causes. It depends on the knowledge of the people asking, and it can be led toward a preferred answer. For anything significant, support it with data and combine it with a fishbone diagram.

    Fishbone Diagrams

    Fishbone diagram for root cause analysis in industrial plants

    A fishbone diagram (also called an Ishikawa diagram) organizes possible causes into categories. The classic categories are:

    • People: Training, staffing, communication
    • Method: Procedures, work instructions, practices
    • Machine: Equipment design, condition, maintenance
    • Material: Raw materials, spare parts, consumables
    • Measurement: Instrumentation, calibration, data
    • Environment: Operating conditions, weather, contamination

    The team brainstorms possible causes in each category, then narrows down to the most likely ones through data and discussion. A fishbone lists possible causes; it does not prove any of them. Each candidate cause should be confirmed or ruled out with evidence before it is treated as a root cause.

    Fault Tree and Barrier Analysis

    For complex or serious events, two further methods are useful:

    • Fault tree analysis starts with the failure at the top and works downward, showing which combinations of events (using AND/OR logic) could have produced it. It is valuable when several independent failures had to occur together.
    • Barrier analysis asks what safeguards were supposed to prevent the event (alarms, trips, relief valves, procedures, guards), and why each one failed or was absent.

    Gathering Data

    Good RCA depends on good data. Sources include:

    • Operating data: Trends, alarms, setpoints
    • Maintenance records: Work orders, inspection reports, parts replaced
    • Interviews: Operators, maintenance staff, supervisors
    • Physical evidence: Failed parts, photographs, samples
    • Procedures and drawings: What was supposed to happen vs. what did

    Collecting data early is important. Physical evidence can be lost, and memories fade.

    Preserving evidence: Before repairing, photograph the failed component in place, tag and retain failed parts, and record settings, positions, and readings. Save control system trends and alarm logs before they are overwritten. Where practical, do not clean failed parts before they are inspected.

    Interviewing well: Interview people separately and soon after the event. Ask open questions (“what did you see?”) rather than leading ones (“didn’t you skip the check?”). Make it clear the purpose is to understand the system, not to assign blame. People share more when they trust that the process is fair.

    Building a timeline: A simple sequence of events, with times, from normal operation through the failure and response, often reveals gaps and contradictions that are not obvious otherwise.

    Determining Root Cause

    Determining the root cause requires distinguishing between different levels of causation.

    Level Description Example
    Immediate cause What directly caused the failure Bearing seized
    Contributing cause What made the failure more likely Lubrication was overdue
    Root cause The fundamental cause that, if addressed, prevents recurrence No lubrication task was scheduled or assigned in the maintenance system

    In many cases, there are multiple root causes. For example, a failure might result from both a design weakness and a maintenance gap. Both must be addressed.

    A common mistake is to stop at the immediate cause or the first plausible explanation. Good RCA keeps asking “why” until it reaches a cause that can actually be fixed.

    A useful test: A cause is likely a true root cause if (1) removing it would have prevented the failure, (2) it is within the plant’s ability to control, and (3) addressing it would also prevent similar failures elsewhere.

    Handling Human Error

    When human error is a factor, RCA should examine why the error was possible: was the procedure unclear, the training inadequate, or the task design flawed? Human error is usually a symptom of a system weakness, not a root cause in itself.

    Useful questions include:

    • Was the procedure available, clear, and current?
    • Was the person trained and competent for the task?
    • Was the workload, time pressure, or shift arrangement a factor?
    • Was the equipment or display designed in a way that invites mistakes?
    • Would another competent person have made the same error in the same situation?

    If the last answer is “yes,” the problem is the system, not the individual. Treating it as an individual failing will not prevent recurrence.

    Corrective Actions

    Corrective actions should address the root cause, not just the symptom.

    Types of corrective actions:

    • Engineering: Design changes, material changes, added instrumentation
    • Procedural: Revised procedures, added steps, clearer instructions
    • Training: Additional training, refresher courses, competency assessment
    • Organizational: Staffing changes, clearer responsibilities, better communication
    • Monitoring: Added condition monitoring, alarms, or inspections

    Prefer stronger actions. Actions that remove or engineer out the hazard (a design change, an interlock, an alarm) are generally more reliable than actions that depend on people remembering (a reminder, a retraining session). Where a procedural or training action is used, back it up with a check or a monitoring measure.

    Corrective actions should be:

    • Specific: Clearly defined and actionable.
    • Assigned: Someone is responsible for each action.
    • Time-bound: Each action has a deadline.
    • Verified: Completion is confirmed.

    Actions that are vague (“improve training”) or unassigned tend not to happen.

    Weigh cost against benefit. Compare the cost of an action with the cost of recurrence (repair, lost production, safety exposure). Where an ideal fix is not affordable now, adopt an interim measure and record the longer-term action.

    Verification

    RCA is not complete until corrective actions are verified.

    Verification methods:

    • Follow-up inspection: Confirming that the corrective action was implemented.
    • Performance monitoring: Confirming that the failure has not recurred.
    • Audit: Reviewing records and practices to confirm compliance.
    • Trend analysis: Tracking failure rates over time.

    Verification has two parts: confirming the action was done (implementation) and confirming it worked (effectiveness). Effectiveness may take weeks or months to demonstrate, so set a review date.

    If the failure recurs, the analysis and the actions should be revisited. The root cause may have been misidentified, the actions may not have been fully implemented, or they may not have been effective enough.

    Documenting RCA and Managing Knowledge

    A brief written record turns one investigation into lasting plant knowledge. A simple RCA report should include:

    • Problem statement and impact
    • Team members and date
    • Timeline and key evidence
    • Causes identified and root cause(s)
    • Corrective actions with owner and due date
    • Verification results

    RCA findings should be stored in a searchable database so that lessons can be applied to similar equipment elsewhere in the plant. Without this, the same failure may be investigated repeatedly in different areas.

    In practice, a shared folder with consistent file names, or a field in the maintenance management system, is enough for a small plant. Tag each record with equipment type, failure mode, and area so it can be found later. Review past RCAs when planning maintenance, updating procedures, and training new staff. Also ask whether a finding applies to similar equipment elsewhere, such as other pumps on the same service.

    Common Mistakes in RCA

    Even experienced teams make mistakes. Common ones include:

    • Stopping too early: Accepting the first plausible cause without digging deeper.
    • Blaming individuals: Focusing on human error without examining the system that allowed it.
    • Skipping data collection: Relying on memory and assumption rather than evidence.
    • Not involving the right people: Missing knowledge from operators, maintenance, or engineering.
    • Vague corrective actions: Actions that are not specific, assigned, or time-bound.
    • Not verifying: Assuming the fix worked without confirming it.
    • Not documenting: Losing the knowledge for future reference.
    • Starting with a preferred answer: Using the analysis to justify a conclusion already reached.
    • Analyzing too much: Applying full RCA to every minor event, which exhausts the team and discredits the process.

    These mistakes reduce the value of RCA and allow failures to recur.

    How Japanese EPC Firms Approach RCA

    Japanese engineering firms are widely known for their disciplined approach to problem-solving. Common characteristics include:

    • Thorough investigation: Time is taken to gather data and understand the problem fully.
    • Team involvement: RCA is performed with input from operations, maintenance, and engineering.
    • System focus: The focus is on improving systems, not blaming individuals.
    • Detailed documentation: Analysis, decisions, and results are carefully recorded.
    • Verification: Corrective actions are tracked and verified.
    • Long-term learning: Lessons are captured and applied across the plant, and often fed back into design standards and future projects.

    For plant owners, this often means fewer repeat failures and a culture of continuous improvement.

    How to Evaluate RCA Readiness

    When considering RCA for your plant, ask:

    Question Why It Matters
    Are triggers for RCA defined? Ensures RCA is performed when it matters
    Is there a standard process? Ensures consistency and completeness
    Are the right people involved? Brings together operations, maintenance, and engineering
    Is data collected and evidence preserved systematically? Ensures analysis is based on evidence
    Is there a no-blame culture? Encourages honest reporting, including near-misses
    Are corrective actions specific and assigned? Ensures actions are implemented
    Is verification performed? Confirms that failures do not recur
    Is documentation searchable and shared? Captures knowledge for future reference

    A plant that addresses these questions is ready to benefit from RCA.

    Conclusion

    Root Cause Analysis is a structured approach for finding out why failures happen and preventing them from happening again. It replaces the cycle of repeated repairs with a cycle of learning and improvement.

    For small to medium-scale industrial plants, RCA is especially valuable because repeat failures consume limited resources and disrupt production. Applied consistently, RCA improves reliability, reduces maintenance cost, and builds a culture of continuous improvement.

    Key Takeaways

    • RCA identifies the underlying causes of failures and prevents recurrence
    • RCA is distinct from troubleshooting: one restores operation, the other prevents repeat failures
    • Triggers include safety incidents, near-misses, production loss, repeat failures, and critical equipment
    • The process includes problem definition, data gathering, cause identification, and verification
    • Methods include 5 Whys, fishbone diagrams, fault tree analysis, and barrier analysis
    • Corrective actions must be specific, assigned, time-bound, and verified
    • Human error is usually a symptom, not a root cause
    • RCA findings should be documented and stored in a searchable database
    • Japanese EPC firms emphasize thorough investigation and system focus
  • Reliability-Centered Maintenance (RCM): A Practical Guide for Industrial Plants

    Reliability-Centered Maintenance (RCM): A Practical Guide for Industrial Plants

    Every plant has maintenance tasks it performs because they have always been done. Filters changed on a fixed schedule. Bearings greased every month. Equipment overhauled every few years. These tasks may be necessary—or they may be wasted effort that adds cost without improving reliability.

    Reliability-Centered Maintenance (RCM) is a structured approach that asks a simple question: what maintenance does this equipment actually need to keep doing what it is supposed to do? Instead of applying generic schedules, RCM analyzes each asset’s functions, failure modes, and consequences to determine the right maintenance for the right reasons.

    For small to medium-scale industrial plants, RCM can be especially valuable because it focuses limited maintenance resources where they matter most. It helps avoid both under-maintaining critical equipment and over-maintaining non-critical equipment.

    This article explains what RCM is, how it works, and how to apply it practically in an industrial plant.

    What Is Reliability-Centered Maintenance?

    RCM is a process for determining the maintenance requirements of any physical asset in its operating context. It was originally developed in the aviation industry in the 1960s and has since been applied across many industries, including power generation, oil and gas, and manufacturing.

    The core idea is simple: maintenance should be driven by the consequences of failure, not by habit or manufacturer recommendations alone.

    The formal requirements for RCM are defined in SAE JA1011, “Evaluation Criteria for Reliability-Centered Maintenance (RCM) Processes.” This standard specifies what a process must do to be called RCM. It does not prescribe a specific methodology, but it sets minimum criteria—such as answering the seven core questions—that any process must meet before it can legitimately be labeled RCM. This matters for plant owners because vendors and consultants sometimes market simplified maintenance reviews as “RCM” when they do not meet the standard’s criteria.

    RCM asks:

    • What is the equipment supposed to do?
    • What happens if it fails?
    • What causes it to fail?
    • What can be done to prevent or detect failure?
    • What if we cannot prevent it?

    The answers determine what maintenance is performed, how often, and by whom.

    Why RCM Matters

    Traditional maintenance approaches often lead to two problems:

    1. Over-maintenance:
    Performing tasks that are not needed, or performing them too frequently. This wastes labor, materials, and downtime. It can also introduce new failure modes (e.g., damage during overhaul).

    2. Under-maintenance:
    Failing to perform tasks that are needed, or performing them too infrequently. This leads to unexpected failures, downtime, and safety incidents.

    RCM helps find the right balance by focusing on:

    • Critical equipment: Where failure has serious consequences.
    • Failure modes: What actually causes equipment to fail.
    • Consequences: What happens if failure occurs.
    • Cost-effectiveness: Whether the maintenance task is worth doing.

    For small plants with limited resources, RCM helps direct effort where it has the greatest impact.

    The Seven Questions of RCM

    Seven questions of reliability-centered maintenance diagram

    RCM is built around seven questions that must be answered for each asset.

    Question What It Addresses
    1. What are the functions and performance standards? What is the equipment supposed to do, and to what standard?
    2. What are the functional failures? How does the equipment fail to meet its function?
    3. What are the failure modes? What causes each functional failure?
    4. What are the failure effects? What happens when each failure mode occurs?
    5. What are the failure consequences? How serious are the effects?
    6. What can be done to predict or prevent the failure? What tasks can address the failure mode?
    7. What if no suitable task can be found? What is the fallback if prevention is not possible?

    Answering these questions systematically produces a maintenance program based on actual need.

    Failure Consequences

    Not all failures are equal. RCM categorizes consequences into four types:

    Consequence Category Description Examples
    Safety and environmental Failure could cause injury, loss of life, or environmental damage Pressure vessel rupture, toxic release
    Operational Failure affects output, quality, or cost Pump failure stopping production
    Non-operational Failure affects only repair cost Minor instrument failure
    Hidden Failure is not evident to operators Standby pump failure

    The category determines how much effort is justified in preventing the failure. Safety and environmental consequences justify the most effort. Non-operational consequences justify the least.

    Failure Modes and Effects Analysis (FMEA)

    FMEA is the analytical tool used in RCM to identify failure modes and their effects. It is typically performed by a team that includes:

    • Operations personnel (who know how equipment is used)
    • Maintenance personnel (who know how equipment fails)
    • Engineers (who understand design and failure mechanisms)
    • Facilitator (who guides the process)

    The facilitator guides the RCM analysis, ensures the team follows the process, and keeps the discussion focused. A skilled facilitator is essential for an effective RCM analysis, especially when the team includes members with different perspectives. Without strong facilitation, sessions can drift into unrelated troubleshooting discussions or get stuck debating failure probabilities instead of moving through the seven questions in sequence.

    Typical FMEA steps:

    1. Define the equipment and its functions.
    2. Identify functional failures.
    3. Identify failure modes for each function.
    4. Identify failure effects for each mode.
    5. Assess consequences.
    6. Identify existing controls.
    7. Recommend actions.

    FMEA is best performed as a team exercise. It captures knowledge from multiple perspectives and builds ownership of the resulting maintenance program.

    Maintenance Task Selection

    Once failure modes are identified, RCM determines what maintenance, if any, is appropriate.

    Task categories:

    Task Type Description When to Use
    Preventive (scheduled) Tasks performed at fixed intervals When failure has a clear age-related pattern
    Predictive (condition-based) Tasks based on condition monitoring When failure can be detected before it occurs
    Detection (failure-finding) Tasks that check hidden functions For hidden failures (e.g., standby equipment)
    Redesign Changing equipment or procedures When no task is effective
    Run-to-failure No maintenance until failure When consequences are acceptable

    The choice depends on the failure mode and its consequences. Not every failure mode can be prevented, and not every one needs to be.

    The RCM Decision Process

    The decision process can be summarized as follows:

    1. Is the failure mode evident to operators?
      If no, use failure-finding tasks.
    2. Does the failure mode have safety or environmental consequences?
      If yes, preventive or predictive tasks must be applied, or the design must be changed.
    3. Does the failure mode have operational consequences?
      If yes, preventive or predictive tasks are justified if cost-effective.
    4. Does the failure mode have only non-operational consequences?
      If yes, run-to-failure may be acceptable.
    5. Is there a suitable task?
      If no, consider redesign or accept the risk.

    This process ensures that maintenance effort is proportional to the consequences of failure.

    Applying RCM in Practice

    Full RCM can be time-consuming, especially for large plants with many assets. For small to medium-scale plants, a pragmatic approach is often appropriate.

    Practical steps:

    1. Select the scope: Focus on critical equipment first. Not every asset needs full RCM analysis.
    2. Assemble the team: Include operations, maintenance, and engineering.
    3. Gather information: Equipment manuals, failure history, and operating experience.
    4. Perform FMEA: Identify functions, failures, modes, effects, and consequences.
    5. Select tasks: Determine what maintenance is appropriate for each failure mode.
    6. Document decisions: Record the analysis and the resulting maintenance program.
    7. Implement and review: Apply the program and review it periodically.

    For plants new to RCM, a pilot project on one critical system is often recommended. This allows the team to learn the process, demonstrate results, and build support before applying RCM more broadly. A well-chosen pilot—typically a system with a known reliability problem or high consequence of failure—gives the team a visible win that makes it easier to justify expanding RCM to the rest of the plant.

    RCM analysis can be supported by specialized software that guides the team through the seven questions, stores failure mode data, and generates maintenance tasks. Spreadsheets can also be used for smaller analyses. Software tools become more valuable as the number of assets grows, since they make it easier to track decisions, link failure modes to maintenance tasks in a CMMS, and update the analysis over time.

    RCM is not a one-time exercise. It should be reviewed as equipment ages, operating conditions change, and new information becomes available.

    Streamlined Approaches

    Full RCM can be resource-intensive. Several streamlined approaches are available:

    Approach Description When to Use
    Classical RCM Full seven-question analysis for each asset Critical, complex equipment
    Streamlined RCM Focused analysis using templates and experience Most plant equipment
    PM Optimization Review and improve existing maintenance program When a program already exists
    Criticality-based Apply RCM only to critical equipment Small plants with limited resources

    For small plants, a criticality-based or streamlined approach is often the most practical.

    Common Mistakes in RCM

    Even experienced practitioners make mistakes. Common ones include:

    • Applying RCM to everything: Wasting resources on non-critical equipment.
    • Skipping the team approach: Missing knowledge from operations and maintenance.
    • Ignoring consequences: Focusing on failure modes without assessing their impact.
    • Over-analyzing: Getting lost in detail rather than making decisions.
    • Not implementing results: Producing a report that sits on a shelf.
    • Not reviewing: Failing to update the analysis as conditions change.
    • Confusing RCM with a one-time project: Treating it as a task, not a practice.

    These mistakes reduce the value of RCM and can lead to its abandonment.

    How Japanese EPC Firms Approach RCM

    Japanese engineering firms are known for their disciplined approach to maintenance and reliability. Common characteristics include:

    • Thorough analysis: RCM is performed carefully, with input from all relevant disciplines.
    • Focus on critical equipment: Resources are directed to equipment where failure matters most.
    • Detailed documentation: Analysis, decisions, and results are carefully recorded.
    • Integration with operations: RCM is connected to daily operations and maintenance planning.
    • Continuous improvement: RCM is reviewed and updated as conditions change.
    • Long-term focus: RCM is treated as an ongoing practice, not a one-time project.

    For plant owners, this often means a maintenance program that is both effective and efficient—neither over-maintaining nor under-maintaining.

    How to Evaluate RCM Readiness

    When considering RCM for your plant, ask:

    Question Why It Matters
    Is critical equipment identified? Focuses RCM effort where it matters
    Is there a cross-functional team? Brings together operations, maintenance, and engineering
    Is failure history available? Informs failure mode analysis
    Are consequences assessed? Determines how much effort is justified
    Are tasks selected based on failure mode? Ensures maintenance is appropriate
    Is the analysis documented? Supports implementation and review
    Is there a plan for review? Keeps the program current

    A plant that addresses these questions is ready to benefit from RCM.

    Key Takeaways

    • RCM determines maintenance requirements based on functions, failure modes, and consequences, and its requirements are formally defined in SAE JA1011.
    • The seven questions provide a structured framework for analysis.
    • Failure consequences (safety, operational, non-operational, hidden) determine how much effort is justified.
    • FMEA, guided by a skilled facilitator, identifies failure modes and their effects.
    • Maintenance tasks are selected based on failure mode and consequence.
    • A pilot project on one critical system helps plants new to RCM build the process and demonstrate value before scaling up.
    • Streamlined approaches and supporting software make RCM practical for small plants.
    • Japanese EPC firms emphasize thorough analysis and integration with operations.

    Conclusion

    Reliability-Centered Maintenance is a structured approach to determining what maintenance equipment actually needs. It replaces habit and generic schedules with analysis based on functions, failure modes, and consequences.

    For small to medium-scale industrial plants, RCM—applied pragmatically—can improve reliability, reduce maintenance cost, and focus limited resources where they matter most. It is not a quick fix, but it is a proven approach for plants that want to get maintenance right.

  • Plant Operations and Maintenance: Key Strategies for Reliability and Efficiency

    Plant Operations and Maintenance: Key Strategies for Reliability and Efficiency

    Commissioning ends, and operation begins. From this point forward, the plant must run reliably, efficiently, and safely for years—often decades. Operations and maintenance (O&M) is what determines whether the plant delivers on the promises made during design and construction.

    For small to medium-scale industrial plants, O&M is especially critical because there is less redundancy and fewer resources to absorb unexpected failures. A well-run O&M program keeps the plant available, controls costs, and extends equipment life. A poor one leads to frequent outages, rising maintenance costs, and declining performance.

    This article covers the key strategies for reliable and efficient plant operations and maintenance, from organization and planning to condition monitoring and continuous improvement.

    What Is Operations and Maintenance?

    Operations and maintenance covers everything required to run the plant and keep it in good condition.

    Operations includes:

    • Running the plant to meet production targets
    • Monitoring process parameters
    • Responding to alarms and disturbances
    • Optimizing performance
    • Managing startup, shutdown, and load changes

    Maintenance includes:

    • Preventive maintenance (scheduled tasks)
    • Predictive maintenance (condition-based)
    • Corrective maintenance (repairs after failure)
    • Overhauls and inspections
    • Spare parts management

    O&M is not just about keeping equipment running. It is about running the plant safely, efficiently, and cost-effectively over its entire life.

    Why O&M Matters

    O&M determines the plant’s long-term performance.

    Factor Impact of Good O&M Impact of Poor O&M
    Availability High (fewer unplanned outages) Low (frequent breakdowns)
    Efficiency Maintained or improved Degrades over time
    Maintenance cost Controlled and predictable Rising and unpredictable
    Equipment life Extended Shortened
    Safety High Compromised
    Compliance Maintained At risk

    For plant owners, O&M is where the return on investment is realized—or lost.

    O&M Organization

    A clear organizational structure is essential for effective O&M.

    Key roles:

    • Plant manager: Overall responsibility for plant operations and maintenance.
    • Operations manager/supervisor: Manages day-to-day operations and shift teams.
    • Maintenance manager/supervisor: Manages maintenance planning, scheduling, and execution.
    • Shift operators: Run the plant during their shifts.
    • Maintenance technicians: Perform preventive, predictive, and corrective maintenance.
    • Engineers: Provide technical support for troubleshooting and improvement.

    Staffing considerations:

    • Shift coverage: How many operators are needed per shift, and how many shifts?
    • Specialist skills: Are specialist skills needed (e.g., vibration analysis, control tuning)?
    • Training: How will staff be trained and kept current?
    • Contract support: Which tasks are performed in-house vs. outsourced? Outsourcing maintenance can provide specialist skills without permanent staff, but it reduces direct control and may increase coordination effort. The decision depends on the criticality of the task, the availability of in-house skills, and cost.

    For small plants, staff may wear multiple hats. Clarity of roles and responsibilities is still essential.

    Maintenance Strategies

    Comparison of maintenance strategies for industrial plants

    There are four main maintenance strategies. Most plants use a combination.

    Strategy Description Advantages Disadvantages
    Reactive (run-to-failure) Repair after failure Low cost for non-critical items High risk, high cost for critical items
    Preventive (time-based) Scheduled maintenance at fixed intervals Predictable, simple May over- or under-maintain
    Predictive (condition-based) Maintenance based on condition monitoring Optimized, reduces unnecessary work Requires monitoring equipment and skills
    Proactive (reliability-centered) Design and maintenance to prevent failures Long-term reliability Requires analysis and commitment

    For small to medium-scale plants, a mix of preventive and predictive maintenance is often the most practical approach. Reactive maintenance is acceptable only for non-critical, low-cost items.

    Preventive Maintenance

    Preventive maintenance is scheduled maintenance performed at fixed intervals, regardless of equipment condition.

    Common preventive tasks:

    • Lubrication
    • Filter replacement
    • Inspection and cleaning
    • Calibration
    • Bolt tightening
    • Vibration checks

    Key considerations:

    • Intervals: Based on manufacturer recommendations, operating experience, and criticality.
    • Scheduling: Coordinated with production to minimize disruption.
    • Documentation: Records of tasks performed, findings, and actions taken. Most plants use a computerized maintenance management system (CMMS) to plan, schedule, and track maintenance activities. A CMMS stores equipment records, maintenance histories, work orders, and spare parts inventory.
    • Effectiveness: Intervals should be reviewed and adjusted based on experience.

    Preventive maintenance is the foundation of most O&M programs, but it can be over- or under-applied if intervals are not reviewed.

    Predictive Maintenance

    Predictive maintenance uses condition monitoring to detect problems before they cause failure. Maintenance is performed only when needed, based on actual equipment condition.

    Common predictive techniques:

    Technique What It Detects Typical Applications
    Vibration analysis Bearing wear, imbalance, misalignment Rotating equipment
    Thermography Hot spots, electrical faults Electrical panels, bearings
    Oil analysis Wear particles, contamination Gearboxes, engines, turbines
    Ultrasonic testing Leaks, thickness loss Piping, tanks, vessels
    Performance monitoring Efficiency loss, fouling Heat exchangers, compressors

    Predictive maintenance requires:

    • Monitoring equipment: Sensors, instruments, and data collection systems.
    • Analysis skills: Personnel trained to interpret data.
    • Baselines: Reference data to compare against.
    • Action procedures: What to do when a problem is detected.

    For small plants, predictive maintenance may be applied selectively to critical equipment only.

    Condition Monitoring

    Key condition monitoring parameters for industrial plants

    Condition monitoring is the foundation of predictive maintenance. It involves measuring equipment parameters to detect changes that indicate developing problems.

    Key parameters to monitor:

    • Vibration: Indicates bearing wear, imbalance, misalignment, looseness.
    • Temperature: Indicates overheating, lubrication problems, electrical faults.
    • Pressure: Indicates blockages, leaks, valve problems.
    • Flow: Indicates fouling, blockages, pump problems.
    • Oil condition: Indicates wear, contamination, degradation.
    • Performance: Indicates efficiency loss, fouling, degradation.

    Monitoring approaches:

    • Manual: Periodic readings by operators or technicians.
    • Semi-automated: Portable instruments with data logging.
    • Automated: Permanently installed sensors with continuous monitoring.

    For small plants, manual and semi-automated approaches are often sufficient for non-critical equipment. Critical equipment may justify automated monitoring.

    Spare Parts Management

    Spare parts management ensures that the right parts are available when needed, without tying up excessive capital in inventory.

    Key considerations:

    • Criticality: Which parts are critical to operation? Which can wait?
    • Lead time: How long does it take to obtain each part?
    • Cost: What is the cost of the part vs. the cost of downtime?
    • Storage: Where will parts be stored, and under what conditions?
    • Obsolescence: Will parts become unavailable over time?

    Spare parts categories:

    • Consumables: Used regularly, low cost (filters, lubricants).
    • Critical spares: Essential for operation, may have long lead times.
    • Insurance spares: High-cost items held in case of failure.
    • Rotables: Components that are swapped out and repaired.

    For small plants, a focused spare parts strategy is essential. Stocking everything is expensive; stocking nothing risks extended downtime.

    Performance Monitoring and Optimization

    O&M is not just about keeping equipment running. It is also about keeping the plant performing at its best.

    Key performance indicators (KPIs):

    • Availability: Percentage of time the plant is available for operation.
    • Reliability: Frequency of forced outages.
    • Heat rate: Efficiency of fuel conversion.
    • Output: Actual vs. design output.
    • Maintenance cost: Cost per unit of output.
    • Safety: Recordable incidents, lost-time injuries.

    KPIs should have targets based on design values, industry benchmarks, or historical performance. Targets should be challenging but achievable, and reviewed periodically.

    Optimization opportunities:

    • Operating practices: Adjusting setpoints, load allocation, startup/shutdown procedures.
    • Maintenance practices: Adjusting intervals, improving procedures.
    • Equipment upgrades: Replacing or modifying equipment for better performance.
    • Control tuning: Optimizing control loops for stability and efficiency.

    Performance monitoring helps identify where improvements are possible and whether changes are effective.

    Safety in O&M

    Safety is not separate from O&M. It is part of every task.

    Key safety considerations:

    • Permit-to-work systems: For hazardous tasks.
    • Lockout/tagout: For equipment isolation.
    • Personal protective equipment (PPE): Appropriate for each task.
    • Training: Regular safety training for all staff.
    • Incident reporting: Reporting and investigating all incidents and near-misses.
    • Safety culture: Leadership commitment to safety at all levels.

    Safety incidents are costly—in human terms, in downtime, and in reputation. A strong safety culture is essential for long-term O&M success.

    Continuous Improvement

    O&M is not static. Equipment ages, conditions change, and new techniques become available. Continuous improvement keeps the plant performing at its best.

    Improvement approaches:

    • Root cause analysis: Investigating failures to prevent recurrence. Root cause analysis (RCA) is a structured process for investigating failures to identify underlying causes and prevent recurrence. Common methods include 5 Whys, fishbone diagrams, and fault tree analysis.
    • Reliability-centered maintenance (RCM): Analyzing equipment functions and failure modes to optimize maintenance.
    • Benchmarking: Comparing performance against similar plants.
    • Lessons learned: Capturing and applying lessons from projects and operations.
    • Training and development: Keeping staff skills current.

    Continuous improvement requires commitment from leadership and engagement from staff. It is not a one-time project but an ongoing practice.

    Common Mistakes in O&M

    Even experienced operators make mistakes. Common ones include:

    • Neglecting preventive maintenance: Leading to premature failures.
    • Over-maintaining: Performing unnecessary tasks that add cost without benefit.
    • Ignoring condition monitoring data: Missing early warning signs.
    • Insufficient spare parts: Leading to extended downtime.
    • Poor documentation: Making troubleshooting and improvement difficult.
    • Weak safety culture: Leading to incidents and injuries.
    • No continuous improvement: Letting performance degrade over time.

    These mistakes are costly to correct once they become habits. They are much cheaper to avoid through good planning and discipline.

    How Japanese EPC Firms Approach O&M

    Japanese engineering firms are known for their disciplined approach to O&M. Common characteristics include:

    • Thorough planning: Maintenance plans, spare parts strategies, and training programs are developed early.
    • Detailed documentation: Records of maintenance, inspections, and performance are carefully maintained.
    • Discipline in execution: Procedures are followed consistently.
    • Continuous improvement: Lessons are captured and applied.
    • Long-term focus: O&M is treated as a long-term commitment, not a short-term cost.

    For plant owners, this often means higher availability, lower maintenance costs, and longer equipment life.

    How to Evaluate O&M Readiness

    When reviewing O&M readiness, ask:

    Question Why It Matters
    Is there a clear O&M organization? Ensures accountability
    Are maintenance strategies defined? Balances preventive, predictive, and reactive
    Is condition monitoring in place? Detects problems before failure
    Is spare parts management planned? Ensures parts are available when needed
    Are KPIs defined and tracked? Measures performance and identifies improvement
    Is safety embedded in O&M? Protects people and assets
    Is continuous improvement practiced? Keeps performance from degrading

    A plant that addresses these questions is likely to perform reliably and efficiently over its life.

    Key Takeaways

    • O&M determines long-term plant availability, efficiency, and cost
    • Maintenance strategies include reactive, preventive, predictive, and proactive
    • Condition monitoring detects problems before failure
    • Spare parts management balances criticality, lead time, and cost
    • KPIs measure performance and identify improvement opportunities
    • Safety must be embedded in every O&M task
    • Japanese EPC firms emphasize thorough planning and disciplined execution

    Conclusion

    Operations and maintenance determine whether a plant delivers on its design promise. For small to medium-scale industrial plants, O&M deserves careful planning and disciplined execution from the day the plant starts up.

    By focusing on organization, maintenance strategies, condition monitoring, spare parts, performance monitoring, safety, and continuous improvement, owners and operators can ensure reliable, efficient, and safe operation for decades.

  • Plant Commissioning: Key Steps and Considerations for Successful Startup

    Plant Commissioning: Key Steps and Considerations for Successful Startup

    Commissioning is the bridge between construction and operation. It is the process of verifying that every system in the plant works as designed, that safety systems function correctly, and that the plant can operate reliably at its specified performance. A successful commissioning phase means the plant starts up smoothly, meets its performance guarantees, and is ready for handover to the owner’s operations team.

    For small to medium-scale industrial plants, commissioning is especially critical because there is less redundancy and fewer resources to manage unexpected problems. A poorly executed commissioning phase leads to delays, cost overruns, and operational problems that persist long after startup.

    This article covers the key steps and considerations in plant commissioning, from pre-commissioning checks to performance testing and handover.

    What Is Commissioning?

    Commissioning is the systematic process of testing and verifying that plant systems and equipment function according to design intent and contract requirements. It includes:

    • Pre-commissioning: Static checks, cleaning, and preparation before energization or startup.
    • Commissioning: Functional testing of individual systems and equipment.
    • Integrated testing: Testing of interconnected systems under operating conditions.
    • Performance testing: Verifying that the plant meets its contractual performance guarantees.
    • Handover: Transferring the plant to the owner’s operations team.

    Commissioning is not just a technical exercise. It is also a contractual milestone, often tied to payment and acceptance.

    Why Commissioning Matters

    Commissioning determines whether the plant:

    • Operates safely: Safety systems are tested and verified.
    • Meets design performance: Output, efficiency, and emissions are confirmed.
    • Is reliable: Equipment and systems function as intended.
    • Is ready for operation: The owner’s team is trained and documentation is complete.
    • Meets contractual requirements: Performance guarantees are verified.

    A successful commissioning phase reduces the risk of operational problems after handover. A poor one creates problems that may take months or years to resolve.

    The Commissioning Process

    Commissioning process sequence diagram for industrial plants

    Commissioning typically follows a structured sequence, though the exact steps depend on the plant type and contract.

    Phase Activities
    Pre-commissioning Static checks, cleaning, flushing, pressure testing, instrument calibration
    Cold commissioning Testing without process fluids or at ambient conditions
    Hot commissioning Testing with process fluids at operating conditions
    Integrated testing Testing interconnected systems under load
    Performance testing Verifying contractual performance guarantees
    Handover Documentation, training, and formal acceptance

    Each phase builds on the previous one. Skipping or rushing a phase creates problems that surface later.

    In larger projects, systems are turned over from construction to commissioning in stages, system by system, rather than all at once. This allows commissioning to begin on completed systems — such as a fuel gas system or a cooling water system — while construction continues elsewhere on the site. Staged turnover requires a clear handoff process: each system is inspected, documented, and formally accepted by the commissioning team before work on it begins, so that responsibility and accountability for that system are never ambiguous.

    Pre-Commissioning

    Pre-commissioning is the preparation phase. It includes:

    Static checks:

    • Verifying that equipment is installed correctly.
    • Checking that instruments are installed and connected.
    • Verifying that electrical connections are correct.
    • Checking that valves are in the correct position.

    Cleaning and flushing:

    • Removing debris, scale, and contaminants from piping and equipment.
    • Flushing oil systems, water systems, and process lines.
    • Cleaning tanks and vessels.

    Pressure testing:

    • Hydrostatic or pneumatic testing of piping and vessels.
    • Verifying that systems can withstand design pressure without leaking.

    Instrument calibration:

    • Calibrating instruments to ensure accurate measurement.
    • Verifying signal transmission and control system response.

    Safety system checks:

    • Verifying that safety interlocks and shutdown systems function correctly.
    • Testing alarms and trips.

    Pre-commissioning is often the most time-consuming phase. Rushing it leads to problems during commissioning.

    Equipment that is installed but not yet commissioned must be preserved according to vendor requirements during this period. This includes protection from moisture, corrosion, and mechanical damage — for example, maintaining nitrogen purges on idle piping, running space heaters in motors and switchgear, and keeping rotating equipment on periodic turning or lubrication cycles. Preservation gaps are easy to overlook on a busy site, but they can cause damage that only shows up once a system is finally started, well after the responsible party has moved on to other work.

    Cold Commissioning

    Cold commissioning tests systems without process fluids or at ambient conditions. It includes:

    • Motor rotation checks: Verifying that motors rotate in the correct direction.
    • Pump and fan testing: Verifying that equipment operates without load.
    • Control loop testing: Verifying that control loops respond correctly.
    • Valve operation: Verifying that valves open, close, and modulate correctly.
    • Interlock testing: Verifying that safety interlocks function correctly.

    Cold commissioning verifies that systems work mechanically and electrically before introducing process fluids.

    Hot Commissioning

    Hot commissioning tests systems with process fluids at operating conditions. It includes:

    • System startup: Starting up individual systems and verifying operation.
    • Process parameter verification: Confirming that temperature, pressure, flow, and other parameters meet design values.
    • Control loop tuning: Tuning controllers for stable, responsive control.
    • Equipment performance: Verifying that equipment operates within design parameters.
    • Emissions testing: Initial checks that emissions are within expected ranges under real operating conditions.

    Hot commissioning is where many problems surface. It requires close coordination between the contractor, owner, and equipment vendors.

    Integrated Testing

    Integrated testing verifies that interconnected systems work together under operating conditions. It includes:

    • Full plant operation: Operating the plant as a whole, not just individual systems.
    • Load testing: Operating at various loads to verify performance across the operating range.
    • Transient testing: Testing response to load changes, trips, and other disturbances.
    • Safety system verification: Verifying that safety systems function correctly under realistic conditions.

    Integrated testing is where the plant is proven as a complete system, not just a collection of components.

    Performance Testing

    Performance testing during plant commissioning

    Performance testing verifies that the plant meets its contractual performance guarantees. It includes:

    • Output testing: Verifying that the plant produces the guaranteed output.
    • Heat rate testing: Verifying that the plant meets its guaranteed efficiency.
    • Emissions testing: Verifying that emissions meet guaranteed or regulatory limits, under the formal test conditions specified in the contract.
    • Availability and reliability: Some contracts require demonstration of availability or reliability over a defined period.

    Performance testing must follow the procedures specified in the contract, including reference conditions, test methods, and measurement uncertainty.

    Handover

    Handover is the formal transfer of the plant from the contractor to the owner. It includes:

    • Documentation: As-built drawings, equipment manuals, operating procedures, and maintenance schedules.
    • Training: Training the owner’s operations and maintenance team.
    • Spare parts: Delivering spare parts and consumables.
    • Warranty documentation: Confirming warranty terms and procedures.
    • Formal acceptance: Signing off that the plant meets contractual requirements.

    Incomplete handover documentation is a common source of problems during the first years of operation.

    Operator training often begins during commissioning, not just at handover. Operators who participate in commissioning — observing cold and hot commissioning, and ideally assisting with integrated testing — gain valuable familiarity with the plant’s actual behavior before they take over operation. This hands-on exposure is generally far more effective than classroom training alone, since it lets operators see how the plant actually responds rather than only how it is supposed to respond on paper.

    A punch list is a record of outstanding items that must be completed before handover. Items are typically categorized by priority, with safety-critical items addressed first, followed by performance-affecting items, and finally minor or cosmetic items. The punch list is developed collaboratively by the contractor, owner, and commissioning team throughout the commissioning process, not just compiled at the end, and it is cleared — or formally accepted with an agreed completion plan for any remaining items — before formal acceptance.

    Key Considerations for Successful Commissioning

    1. Planning

    Commissioning must be planned from the earliest stages of the project. The commissioning plan defines sequence, responsibilities, resources, and milestones.

    2. Roles and Responsibilities

    Clear roles and responsibilities are essential. The contractor, owner, equipment vendors, and commissioning specialists must all know what they are responsible for.

    A commissioning manager is typically appointed to lead the commissioning effort. This person coordinates between the contractor, owner, vendors, and commissioning specialists, and is responsible for the commissioning plan, schedule, and documentation. On smaller projects this role may be combined with other project responsibilities, but the function itself — a single point of accountability for commissioning progress and decisions — should not be skipped, since fragmented ownership of commissioning is a common cause of delay.

    3. Safety

    Commissioning involves energizing equipment, introducing process fluids, and operating at high temperatures and pressures. Safety procedures must be in place and followed.

    4. Documentation

    Commissioning records must be complete and accurate. These records support performance testing, handover, and future maintenance.

    5. Coordination

    Commissioning requires coordination between multiple parties. Regular meetings and clear communication help avoid delays and misunderstandings.

    6. Contingency Planning

    Problems arise during commissioning. Contingency plans help address them without derailing the schedule.

    Common Problems During Commissioning

    Even well-planned commissioning encounters problems. Common ones include:

    • Incomplete pre-commissioning: Leading to problems during hot commissioning.
    • Instrument calibration errors: Causing inaccurate readings and poor control.
    • Control loop tuning problems: Causing instability or poor response.
    • Equipment failures: Leading to delays and rework.
    • Safety system issues: Requiring redesign or modification.
    • Documentation gaps: Making handover difficult.
    • Schedule pressure: Leading to rushed testing and missed problems.

    These problems are costly to resolve after startup. They are much cheaper to avoid through careful planning and execution.

    How Japanese EPC Firms Approach Commissioning

    Japanese engineering firms are known for their disciplined approach to commissioning. Common characteristics include:

    • Thorough pre-commissioning: Static checks, cleaning, and calibration are completed carefully before startup.
    • Detailed planning: Commissioning sequences, responsibilities, and contingencies are planned in advance.
    • Comprehensive documentation: Commissioning records, test results, and as-built documentation are carefully maintained.
    • Integrated teams: Contractor, owner, and vendor personnel work closely together.
    • Long-term focus: Commissioning is treated as the foundation for reliable long-term operation, not just a milestone to pass.

    For plant owners, this often means a smoother startup, fewer surprises, and a plant that is ready for reliable operation from day one.

    How to Evaluate Commissioning Planning

    When reviewing commissioning planning, ask:

    Question Why It Matters
    Is there a detailed commissioning plan? Defines sequence, responsibilities, and milestones
    Are roles and responsibilities clear? Avoids confusion and delays
    Is pre-commissioning thorough? Prevents problems during hot commissioning
    Are safety procedures in place? Protects personnel and equipment
    Is documentation complete? Supports performance testing and handover
    Are contingencies planned? Helps address problems without derailing schedule
    Is the owner involved early? Ensures smooth handover and operation

    A commissioning plan that addresses these questions is likely to deliver a successful startup.

    Key Takeaways

    • Commissioning verifies that systems work as designed before handover.
    • The process includes pre-commissioning, cold, hot, integrated, and performance testing.
    • Pre-commissioning is often the most time-consuming phase, and equipment awaiting commissioning must be properly preserved.
    • In larger projects, systems are turned over from construction to commissioning in stages.
    • A commissioning manager provides a single point of accountability for the commissioning effort.
    • Operator training often begins during commissioning, not just at handover.
    • Punch lists track outstanding items by priority and are cleared before formal acceptance.
    • Performance testing verifies contractual guarantees.
    • Handover includes documentation, training, and formal acceptance.
    • Japanese EPC firms emphasize thorough pre-commissioning and detailed planning.

    Conclusion

    Commissioning is the bridge between construction and operation. It determines whether the plant starts up smoothly, meets its performance guarantees, and is ready for reliable operation. For small to medium-scale industrial plants, commissioning deserves careful planning and execution from the earliest stages of the project.

    By focusing on pre-commissioning, phased testing, documentation, and coordination, owners and contractors can ensure a successful startup and a smooth transition to operation.

  • Insulation and Refractory Systems for Industrial Plants: Key Design Considerations

    Insulation and Refractory Systems for Industrial Plants: Key Design Considerations

    Insulation and refractory systems are essential to plant efficiency, safety, and equipment longevity. Insulation reduces heat loss from hot surfaces and prevents heat gain on cold surfaces. Refractory protects equipment from extreme temperatures and chemical attack. Together, they determine how much energy the plant consumes, how safe it is to operate, and how long critical equipment lasts.

    For small to medium-scale industrial plants, insulation and refractory design is especially critical because there is less margin for error and fewer resources to manage unexpected failures. Poor insulation increases operating cost and creates safety hazards. Poor refractory leads to equipment damage and unplanned outages.

    This article covers the key considerations in insulation and refractory system design for industrial plants, from material selection to installation and maintenance.

    The Role of Insulation

    Insulation serves several essential functions in an industrial plant:

    Energy efficiency: Reducing heat loss from hot surfaces and heat gain on cold surfaces.

    Personnel protection: Preventing burns from hot surfaces and frostbite from cold surfaces.

    Process control: Maintaining process temperatures within required limits.

    Condensation control: Preventing condensation on cold surfaces.

    Freeze protection: Preventing liquids from freezing in cold weather.

    Noise reduction: Some insulation materials also provide acoustic insulation.

    Without proper insulation, a plant consumes more energy, operates less safely, and may not meet process requirements.

    The Role of Refractory

    Refractory materials protect equipment from extreme temperatures and chemical attack. They are used in:

    Boilers and furnaces: Lining the combustion chamber.

    Incinerators: Protecting the shell from high-temperature gases.

    Kilns: Lining the rotating drum.

    Reactor vessels: Protecting the shell from process temperatures.

    Ductwork and stacks: Protecting from hot exhaust gases.

    Refractory must withstand high temperatures, thermal cycling, chemical attack, and mechanical abrasion. Failure leads to equipment damage, energy loss, and safety hazards.

    Insulation Materials

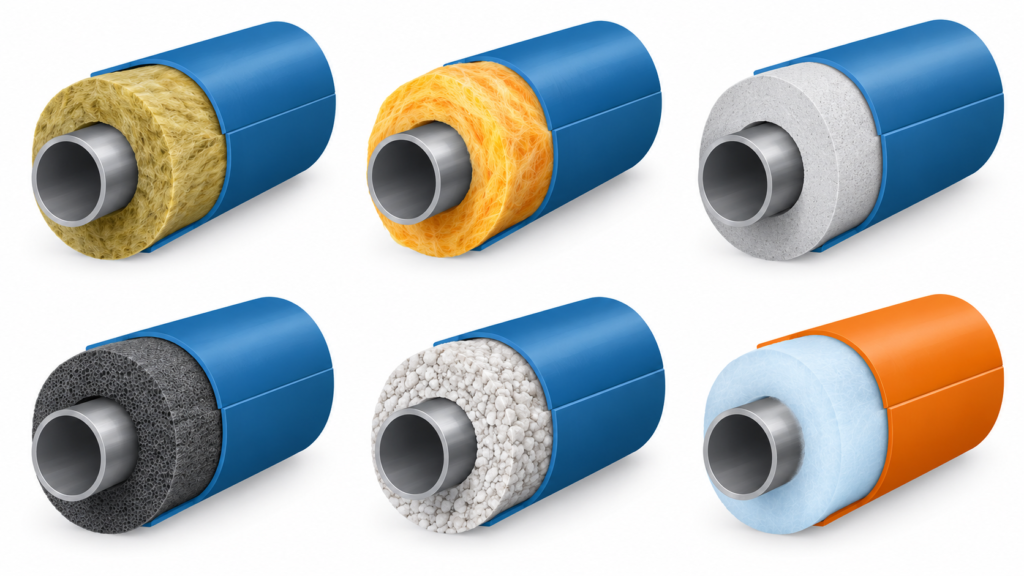

    Common insulation materials for industrial plants

    Common insulation materials for industrial plants

    Insulation materials vary widely in temperature range, thermal conductivity, and cost.

    Material Temperature Range Characteristics Typical Use
    Mineral wool Up to 650°C Good thermal performance, fire-resistant Pipes, vessels, equipment
    Fiberglass Up to 450°C Lightweight, economical Pipes, ducts, equipment
    Calcium silicate Up to 650°C High strength, moisture-resistant Pipes, vessels
    Cellular glass Up to 430°C Closed-cell, moisture-resistant Cold surfaces, underground
    Perlite Up to 650°C Lightweight, thermal-resistant Vessels, equipment
    Aerogel Up to 650°C Excellent thermal performance, thin profile Space-constrained applications
    Polyurethane foam Up to 120°C Excellent for cold service Cold pipes, tanks
    Elastomeric foam Up to 120°C Flexible, closed-cell HVAC, cold service

    Selection depends on temperature, environment, mechanical requirements, and cost.

    Insulation Forms

    Insulation is supplied in several forms, each suited to different applications.

    Form Characteristics Typical Use
    Board Rigid or semi-rigid panels Vessels, tanks, large ducts
    Blanket Flexible, rolled Large surfaces, irregular shapes
    Pipe section Pre-formed cylindrical Pipes
    Block Rigid, molded Vessels, equipment
    Foam Sprayed or poured Complex shapes, voids

    The form affects installation speed, fit, and performance. Pre-formed pipe sections are faster to install than blankets on pipes, but blankets may be better for irregular shapes.

    Refractory Materials

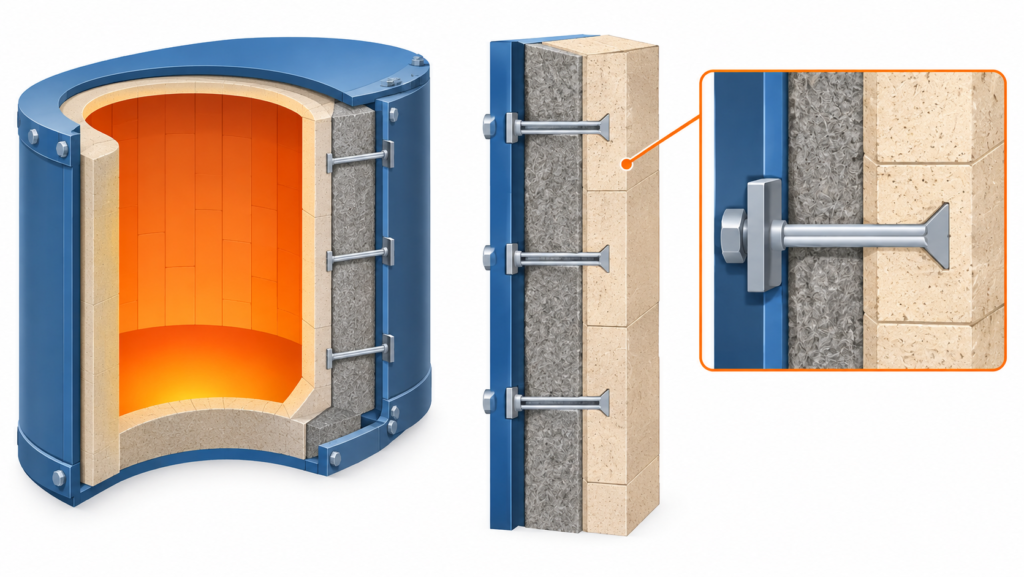

    Refractory lining cross-section for industrial furnaces

    Refractory lining cross-section for industrial furnaces

    Refractory materials are classified by their chemical composition and temperature resistance.

    Material Temperature Range Characteristics Typical Use
    Fireclay brick Up to 1,400°C Economical, moderate resistance Boilers, furnaces
    High-alumina brick Up to 1,800°C High temperature resistance High-temperature furnaces
    Silica brick Up to 1,700°C Resistance to acid slags Glass furnaces, coke ovens
    Magnesia brick Up to 2,000°C Resistance to basic slags Steel furnaces
    Castable refractory Varies Easy to install, complex shapes Boilers, incinerators
    Ceramic fiber Up to 1,400°C Lightweight, low thermal mass Furnace linings, seals

    Selection depends on temperature, atmosphere, slag composition, and mechanical requirements.

    Key Design Considerations for Insulation

    1. Temperature Range

    Insulation must be rated for the maximum operating temperature and any transient excursions.

    2. Thermal Performance

    Insulation thickness determines heat loss or gain. Thicker insulation reduces energy loss but increases cost and space requirements. The economic thickness of insulation is the thickness that minimizes total cost—capital cost plus the present value of energy losses over the plant’s life. It depends on energy prices, insulation cost, and the expected service life.

    3. Moisture Resistance

    Moisture reduces insulation performance and causes corrosion under insulation (CUI). Closed-cell materials and vapor barriers help prevent moisture ingress. Cold service insulation must prevent condensation and ice formation. Vapor barriers are critical to keep moisture out, and closed-cell materials are often preferred because they do not absorb water.

    4. Mechanical Protection

    Insulation must be protected from mechanical damage by metal jacketing, cladding, or coatings.

    5. Fire Safety

    Insulation materials must meet fire safety requirements. Some materials are non-combustible; others require fire-retardant treatments.

    6. Installation and Maintenance

    Insulation must be installed correctly and maintained over time. Damaged insulation must be repaired promptly.

    Key Design Considerations for Refractory

    1. Temperature and Atmosphere

    Refractory must withstand the maximum temperature and the chemical composition of the atmosphere (oxidizing, reducing, or corrosive).

    2. Thermal Cycling

    Refractory in cycling service experiences thermal expansion and contraction. Design must accommodate this without cracking or spalling.

    3. Mechanical Loads

    Refractory must withstand mechanical loads from the process, including abrasion from solids and impact from materials.

    4. Anchoring

    Refractory must be properly anchored to the equipment shell. Anchors must withstand temperature and corrosion. Refractory anchors are typically made from heat-resistant alloys or ceramics. They must be designed to withstand thermal expansion, corrosion, and mechanical loads without failing.

    5. Installation

    Refractory installation requires skilled labor and careful quality control. Improper installation leads to premature failure. New refractory must be dried out gradually before service. A controlled heat-up schedule removes moisture and allows the refractory to cure without cracking. Skipping this step can cause premature failure.

    6. Maintenance

    Refractory degrades over time and requires inspection and repair. Regular inspection helps detect problems before failure.

    Common Problems

    Insulation problems:

    Corrosion under insulation (CUI): Hidden corrosion caused by moisture trapped against the metal surface.

    Insulation damage: Mechanical damage, water ingress, or UV degradation.

    Thermal bridging: Heat conducting through supports or penetrations.

    Incorrect thickness: Insufficient insulation causing excessive heat loss.

    Poor installation: Gaps, compression, or inadequate fastening.

    Refractory problems:

    Cracking: Due to thermal cycling or thermal shock.

    Spalling: Surface layers breaking away.

    Erosion: Gradual wear from abrasive materials.

    Chemical attack: Reaction with slags, gases, or liquids.

    Anchor failure: Corrosion or thermal fatigue of anchors.

    These problems reduce efficiency, increase maintenance cost, and can lead to equipment failure.

    Key Design Considerations for Both Systems

    1. Material Compatibility

    Insulation and refractory materials must be compatible with the process environment, temperature, and chemicals.

    2. Expansion and Contraction

    Both systems must accommodate thermal expansion and contraction without damage.

    3. Support and Attachment

    Insulation and refractory must be properly supported and attached. Supports must withstand temperature and corrosion.

    4. Access for Maintenance

    Insulation and refractory must be accessible for inspection and repair. Access panels and removable sections help.

    5. Documentation

    Material specifications, installation procedures, inspection records, and maintenance history must be documented.

    Common Mistakes in Insulation and Refractory Design

    Even experienced designers make mistakes. Common ones include:

    Underspecifying insulation thickness: Leading to excessive energy loss.

    Ignoring CUI: Failing to design insulation to prevent moisture ingress.

    Wrong refractory for the application: Causing premature failure.

    Inadequate anchoring: Leading to refractory failure.

    Poor installation: Gaps, compression, or inadequate fastening.

    No access for maintenance: Making inspection and repair difficult.

    Insufficient documentation: Making it difficult to troubleshoot and maintain.

    These mistakes are costly to fix after construction. They are much cheaper to avoid during design.

    How Japanese EPC Firms Approach Insulation and Refractory

    Japanese engineering firms are known for their disciplined approach to insulation and refractory design. Common characteristics include:

    Thorough material selection: Materials are selected for the specific temperature, atmosphere, and mechanical conditions.

    Detailed specifications: Insulation thickness, refractory composition, anchoring, and installation procedures are carefully specified.

    Quality control during installation: Installation is inspected and documented.

    Comprehensive maintenance planning: Inspection intervals, repair procedures, and replacement schedules are planned.

    Long-term reliability focus: Designs prioritize reliability and maintainability over lowest initial cost.

    For plant owners, this often means lower energy costs, longer equipment life, and fewer unplanned outages.

    How to Evaluate Insulation and Refractory Design

    When reviewing insulation and refractory design, ask:

    Question Why It Matters
    Are materials rated for the actual temperature and environment? Ensures reliable performance
    Is insulation thickness optimized for energy and cost? Balances capital and operating cost
    Is CUI prevention addressed? Prevents hidden corrosion
    Is refractory suitable for the process atmosphere? Prevents premature failure
    Is anchoring designed for thermal and mechanical loads? Prevents refractory failure
    Is access provided for inspection and maintenance? Enables long-term reliability
    Is documentation complete? Supports troubleshooting and maintenance

    A design that addresses these questions is likely to perform well over the plant’s life.

    Key Takeaways

    • Insulation reduces energy loss, protects personnel, and controls process temperature
    • Refractory protects equipment from extreme temperatures and chemical attack
    • Material selection depends on temperature, environment, and mechanical requirements
    • CUI prevention is critical for insulation design
    • Refractory anchoring and dry-out are critical for reliable performance
    • Japanese EPC firms emphasize thorough material selection and quality control during installation

    Conclusion

    Insulation and refractory systems are essential to plant efficiency, safety, and equipment longevity. For small to medium-scale industrial plants, insulation and refractory design deserves careful attention from the earliest stages of design. By focusing on material selection, installation quality, and maintenance planning, owners and designers can ensure reliable performance for decades.
